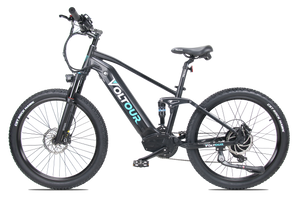

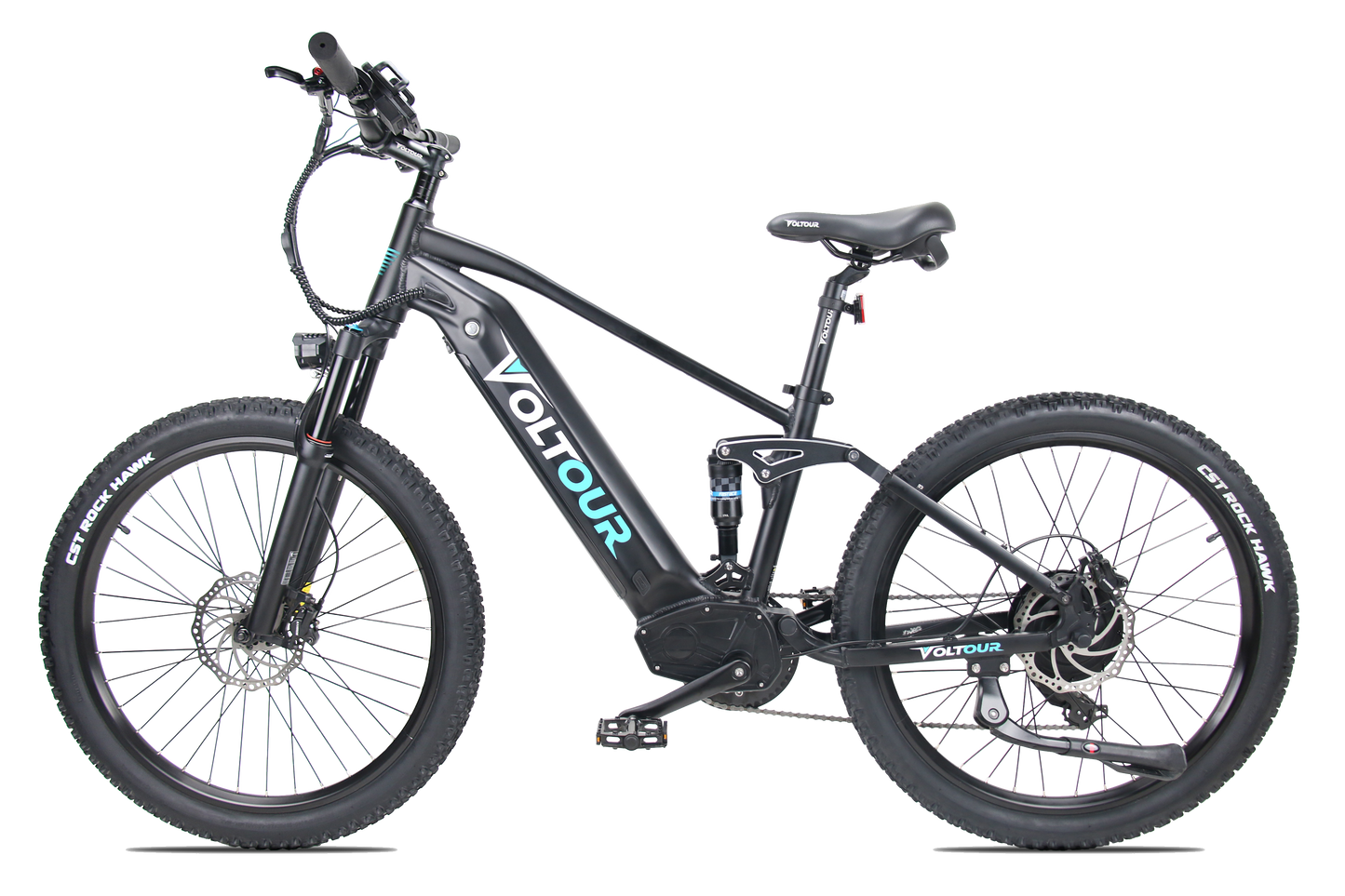

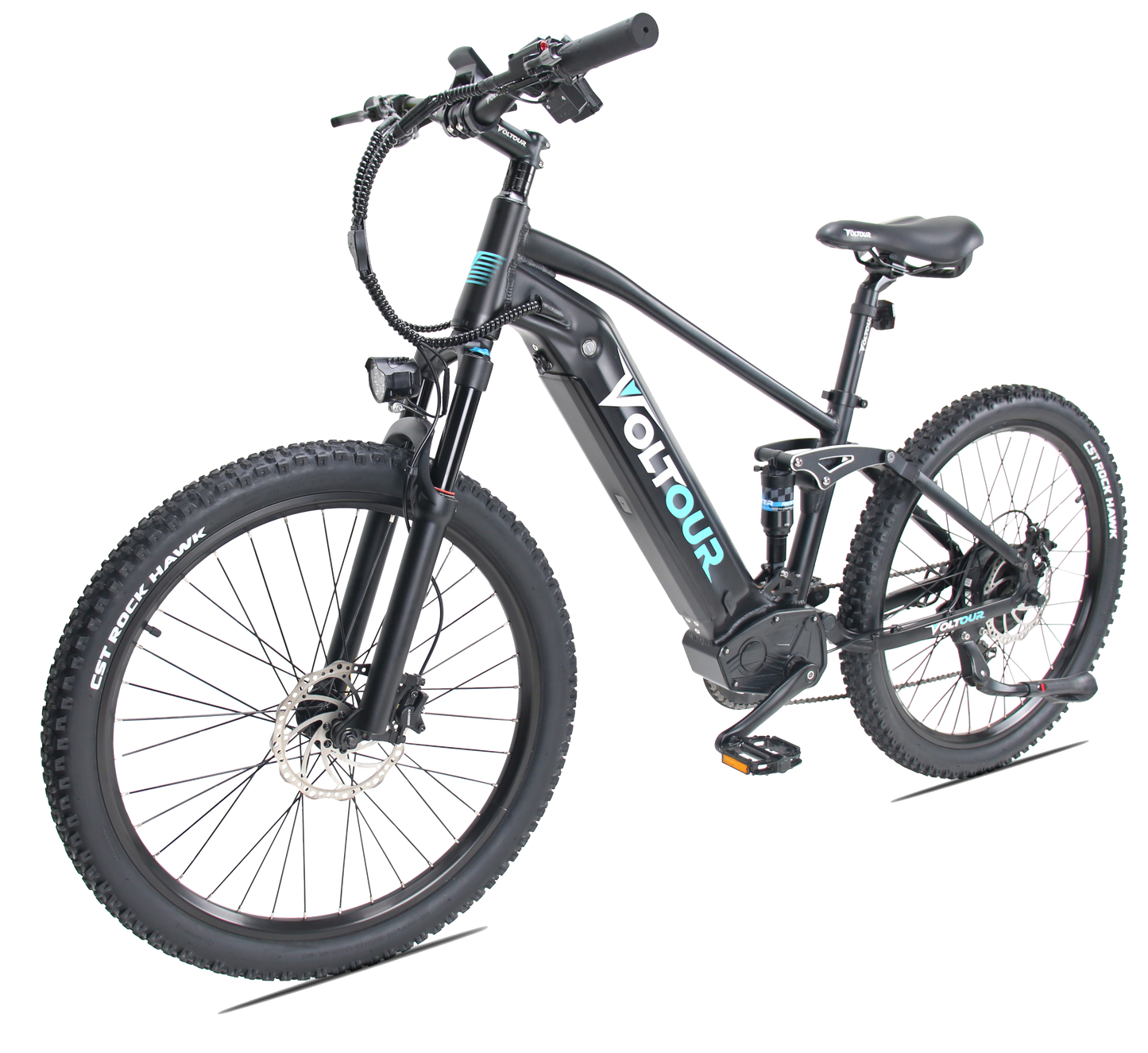

500 Watt Electric Mountain Bike w/ Double Suspension - Ranger 500

500 Watt Electric Mountain Bike w/ Double Suspension - Ranger 500

Regular price $3,999.00
Regular price $2,499.00 Sale price $3,999.00
Sale Sold out
Shipping calculated at checkout.
Color

Quick Assembly

FREE SHIPPING ON ALL BIKES

Exceptional Customer Support

View full details

Overview

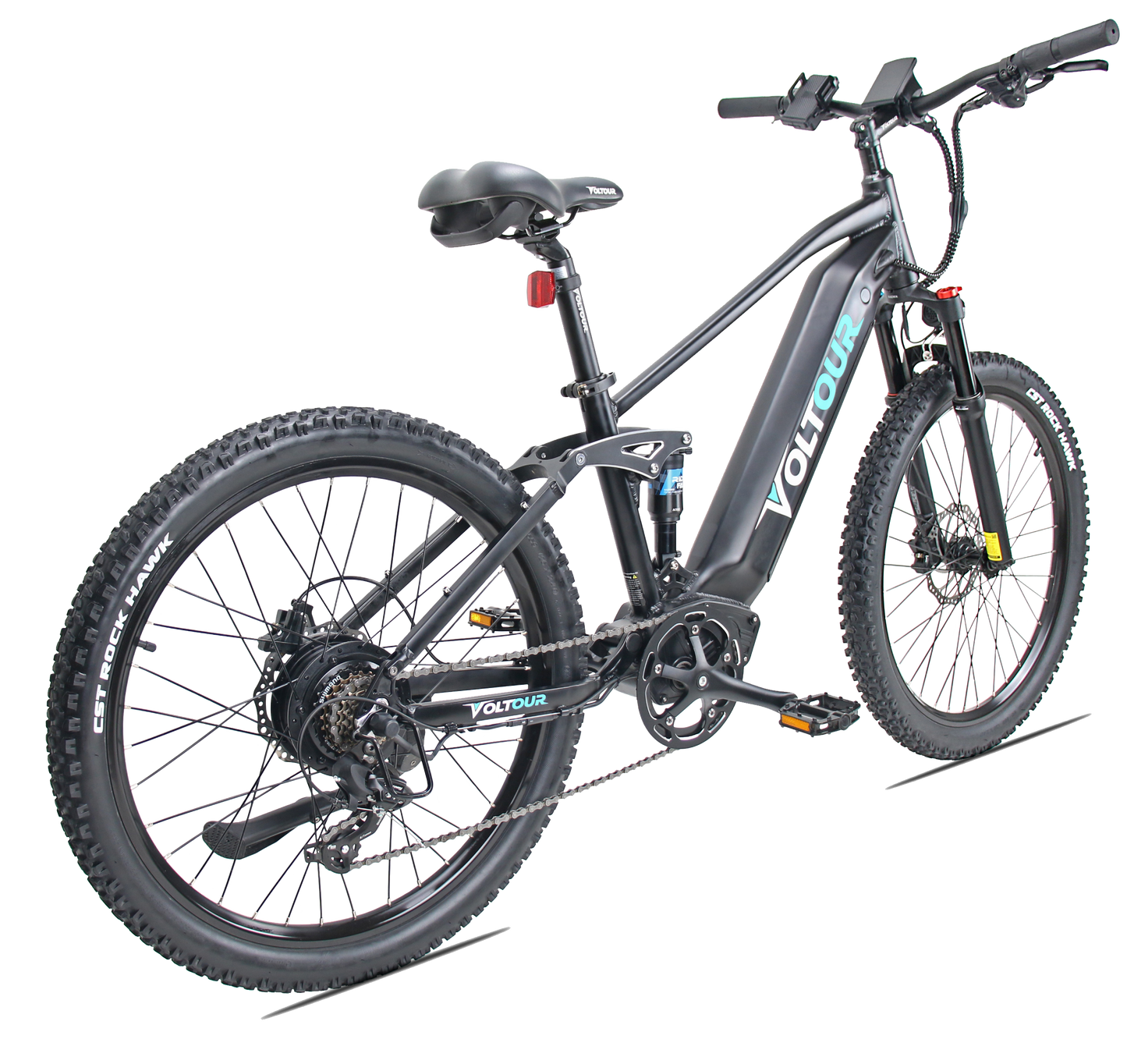

Electric Mountain Bike - Ranger



Sleek & Powerful

Go on an adventure with the Ranger 500! Its new, slender design and improved suspension offer superior performance that will get you where you're going fast and reliably!

Electric Mountain Bike - Ranger



Integrated Frame

Designed with a sturdy frame, the Ranger 500 was designed to support 48V, 14.5Ah battery in tube for a more sleek and streamlined appearance.

Electric Mountain Bike - Ranger



Innovative Technology

With a clear and easy-to-read screen, our colorful LCD display provide real-time information about your speed, distance, battery life, and more.

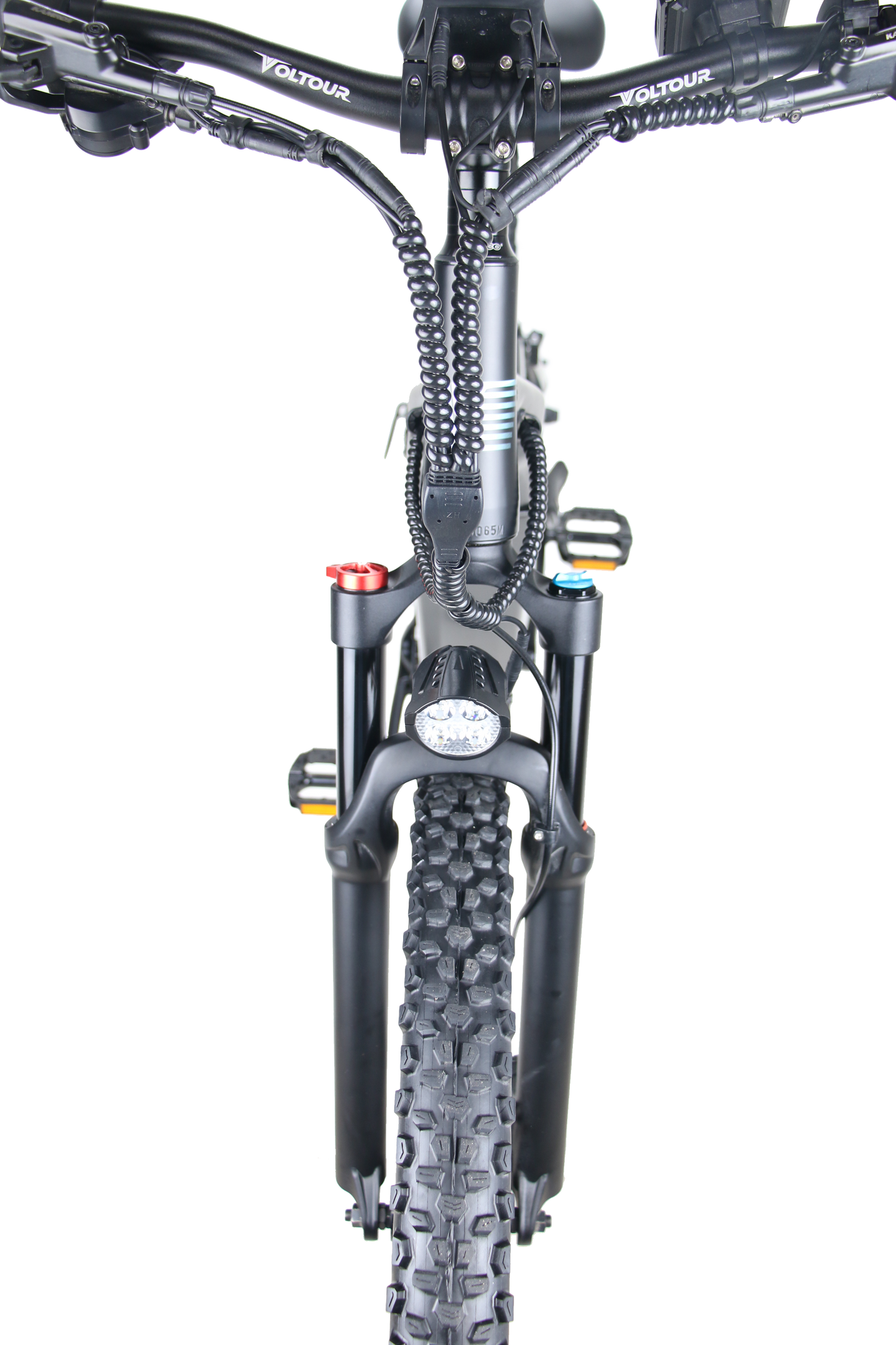

  • Full Suspension

    The Ranger 500 is designed to be a versatile bike with slender and full suspension whether you’re commuting or exploring through unknown terrains.

  • High Performance Tires

    Travel with confidence using the Ranger with its slender 26” x 2.4” high-performance tires provide stability on a variety of terrain, from loose gravel to steep inclines.

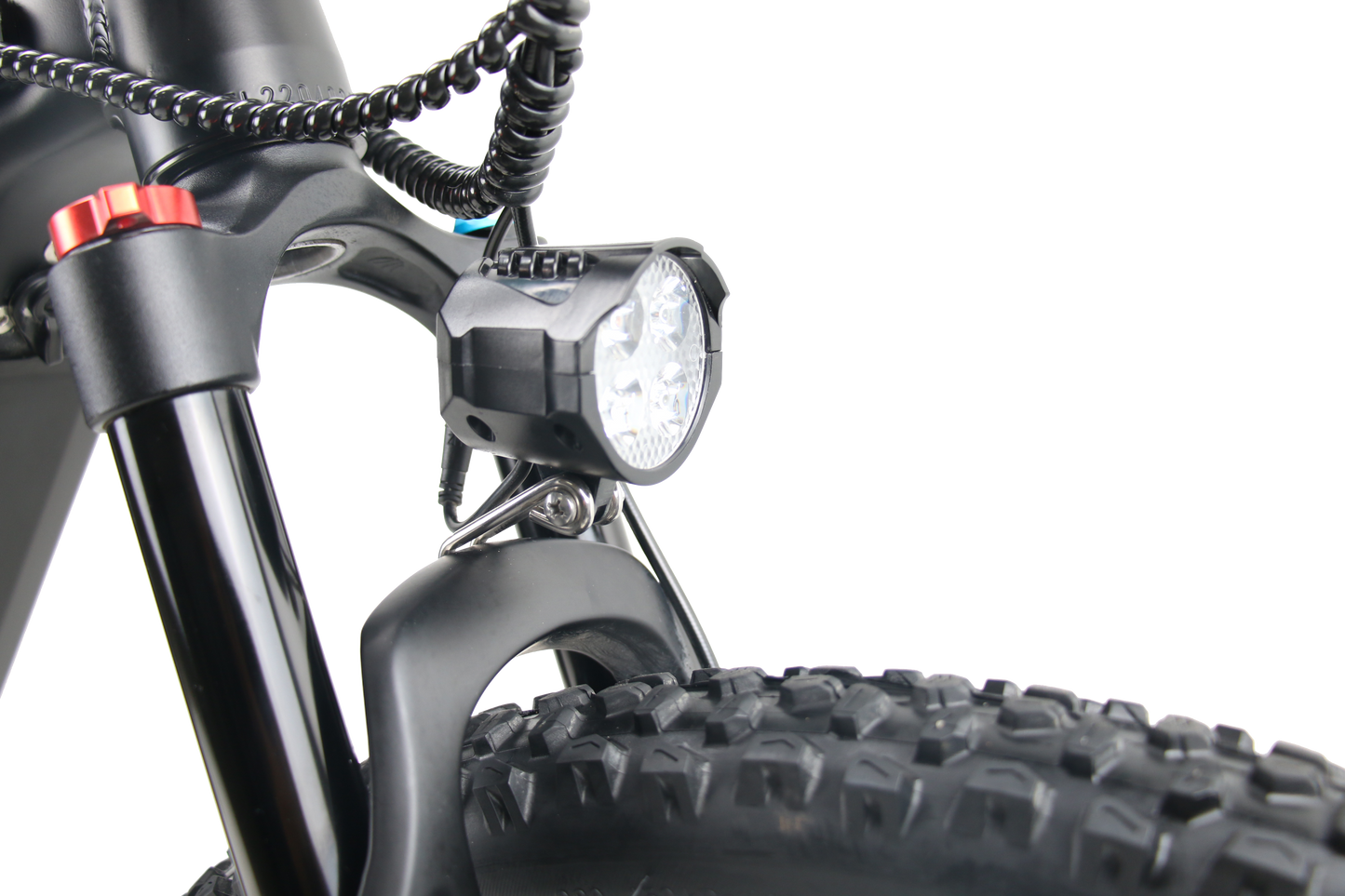

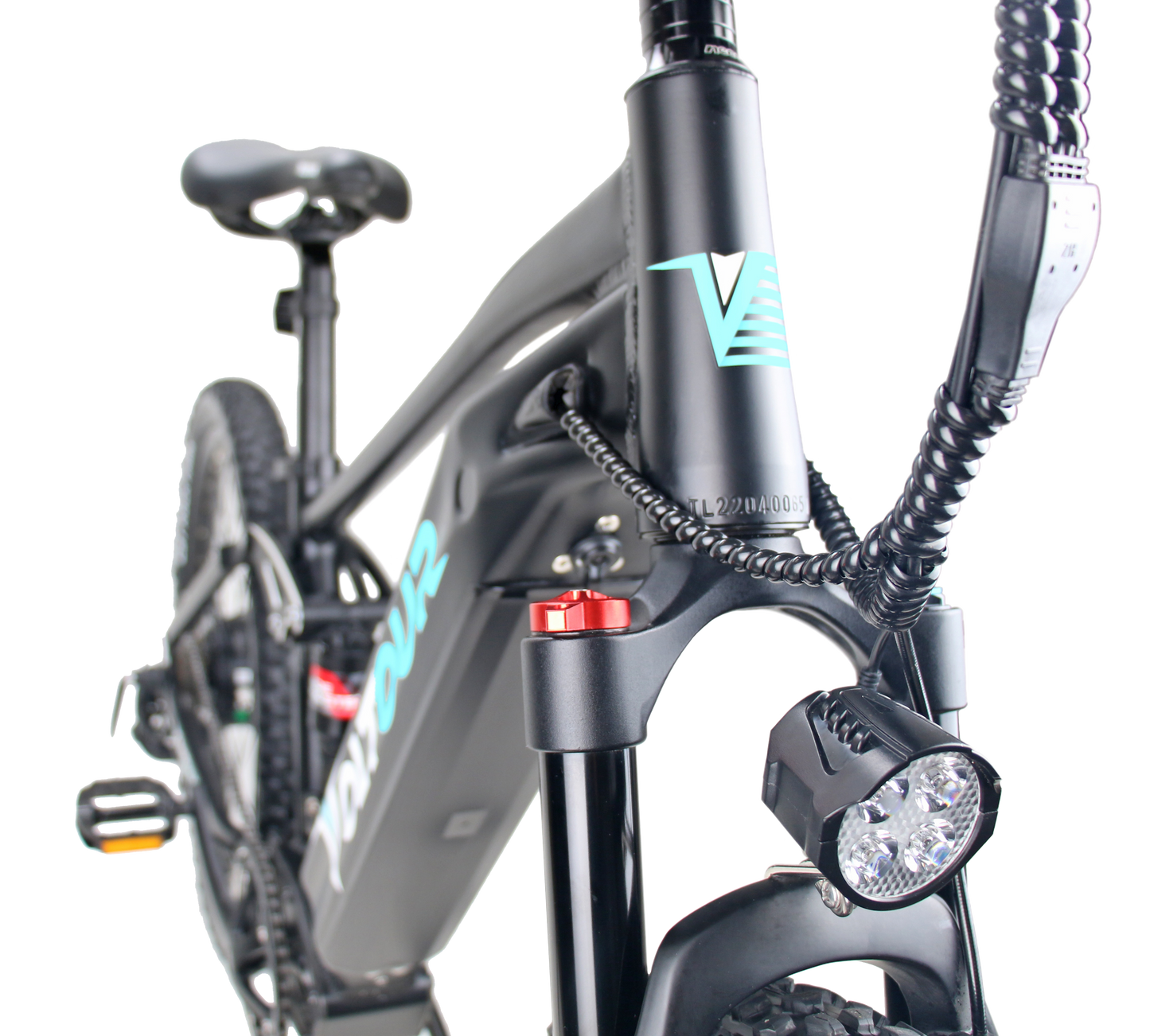

  • Integrated Bright Auto Headlight

    Whether you’re riding during the day or at night, the bike is equipped with a bright headlight automatically turns on when it is dark and providing ample light when needed to ensure safe riding.

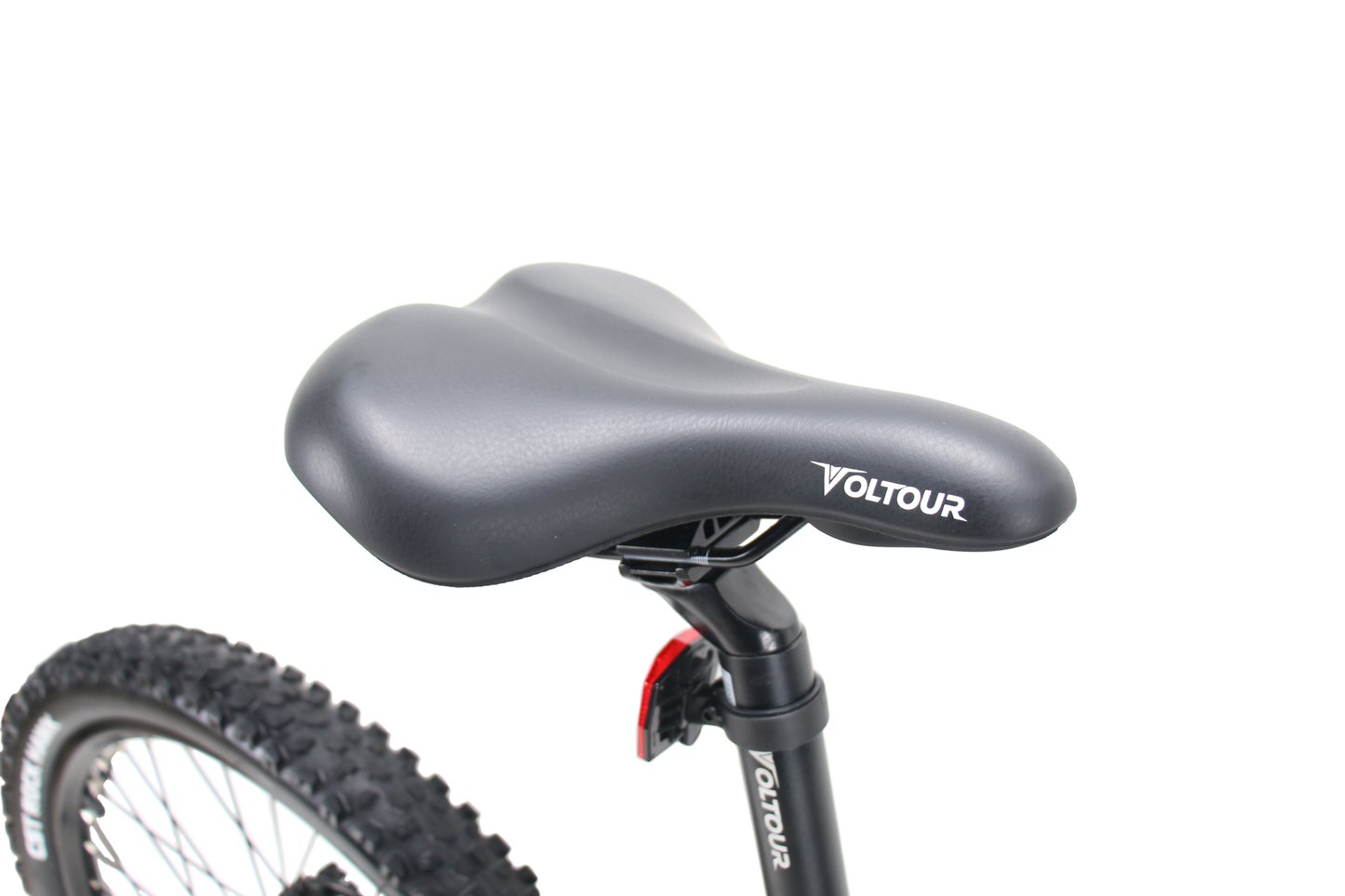

  • Comfortable Riding

    The Ranger 500 comes with an adjustable seat post and a high-quality soft saddle with a handle for comfortable riding and easy transport.

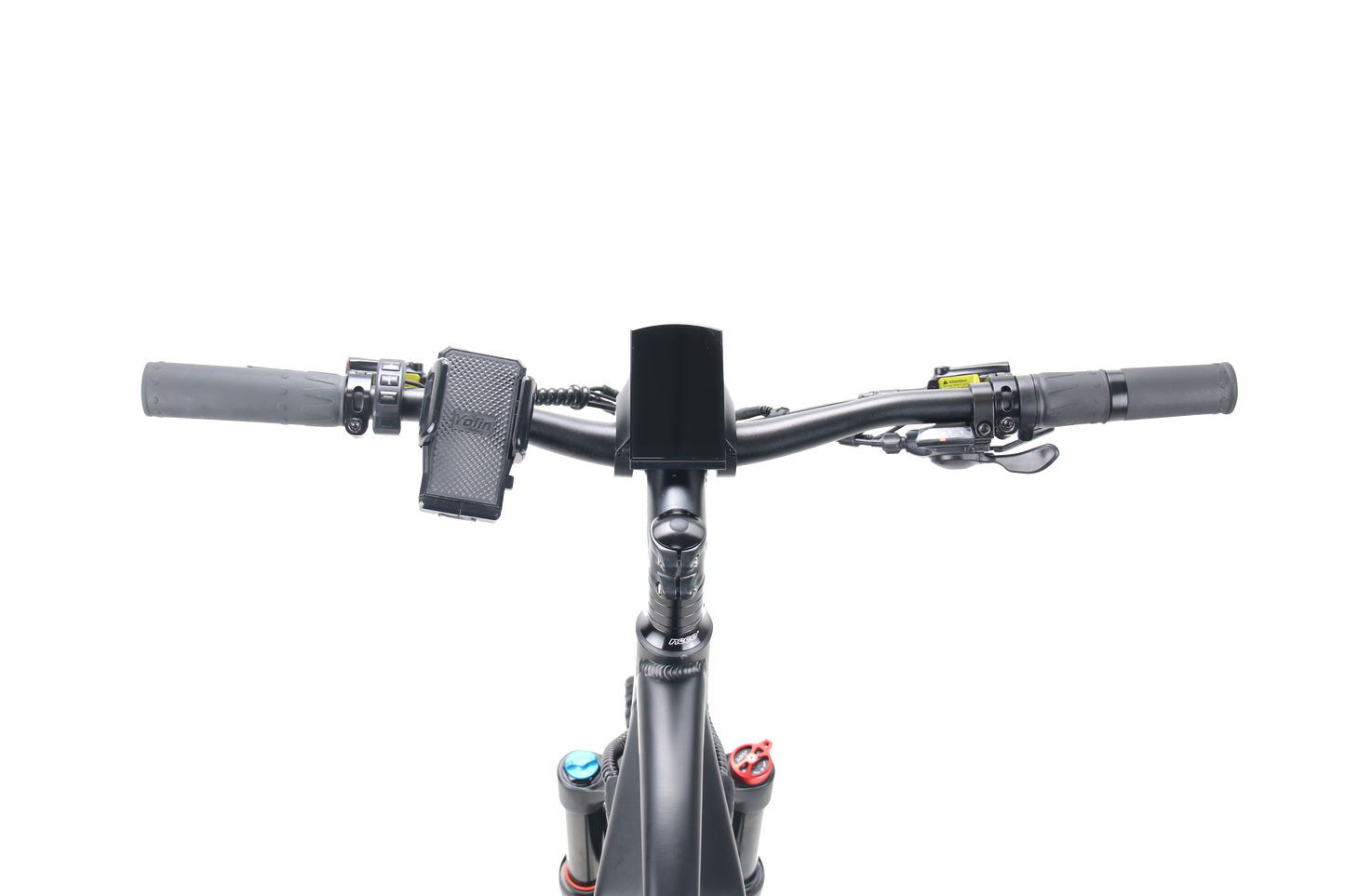

  • Phone Holder Attachment

    Stay connected and fully charged on even the toughest trails with the removable phone mount and USB charging capability!

  • High Quality Motor

    Equipped with high quality 500W Bafang motor, this bike delivers smooth and reliable power on even the steepest climbs and roughest terrain.

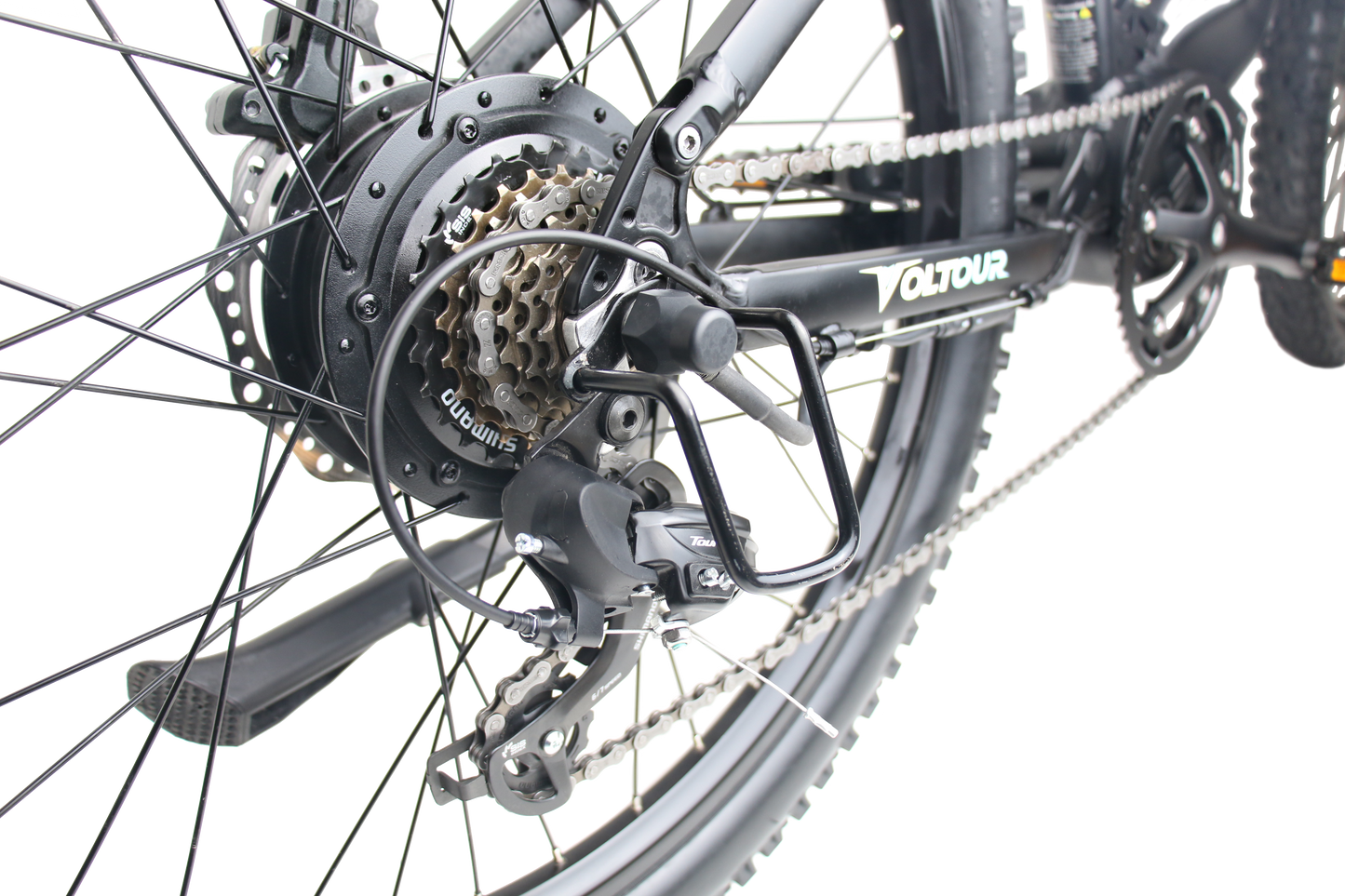

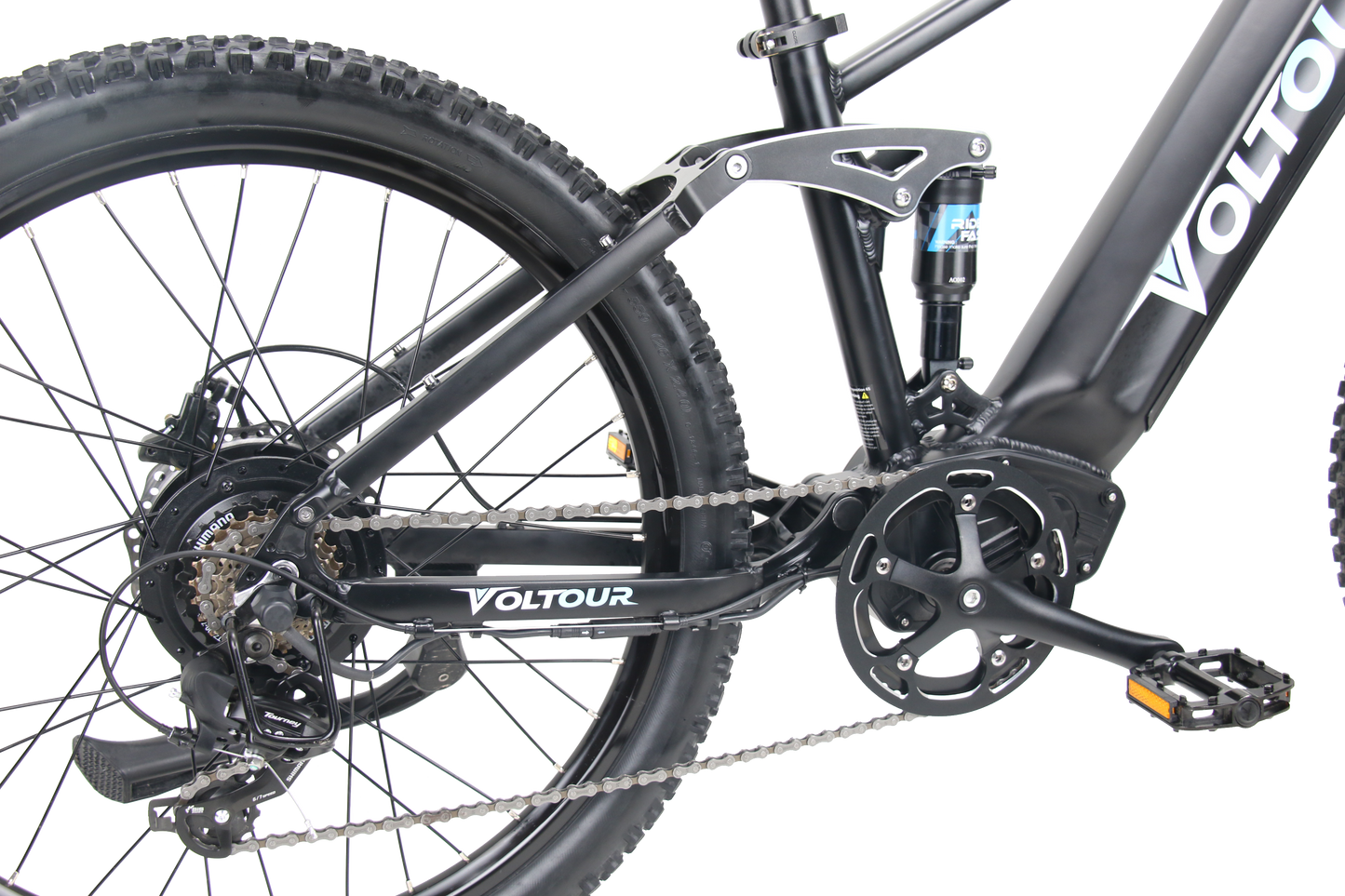

  • 7-Speed Gear Shifter

    7-Speed Shimano derailleur allows for the rider to control the pedaling speed while riding through different terrains such as uphill or downhill.

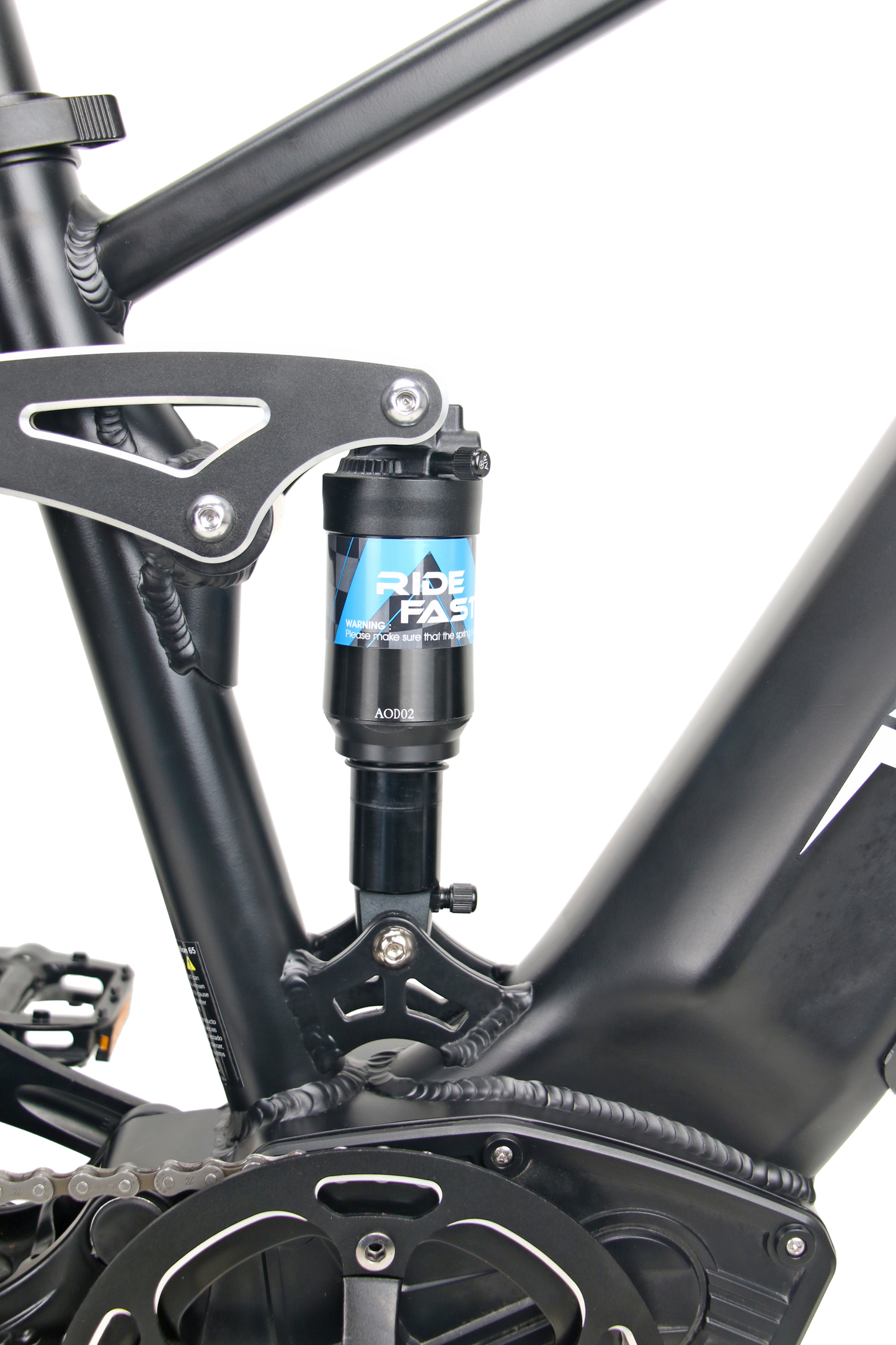

  • Rear Suspension

    Voltour’s Ranger 500 provides extra comfort for those especially bumpy rides with a dual air-chamber rear suspension.

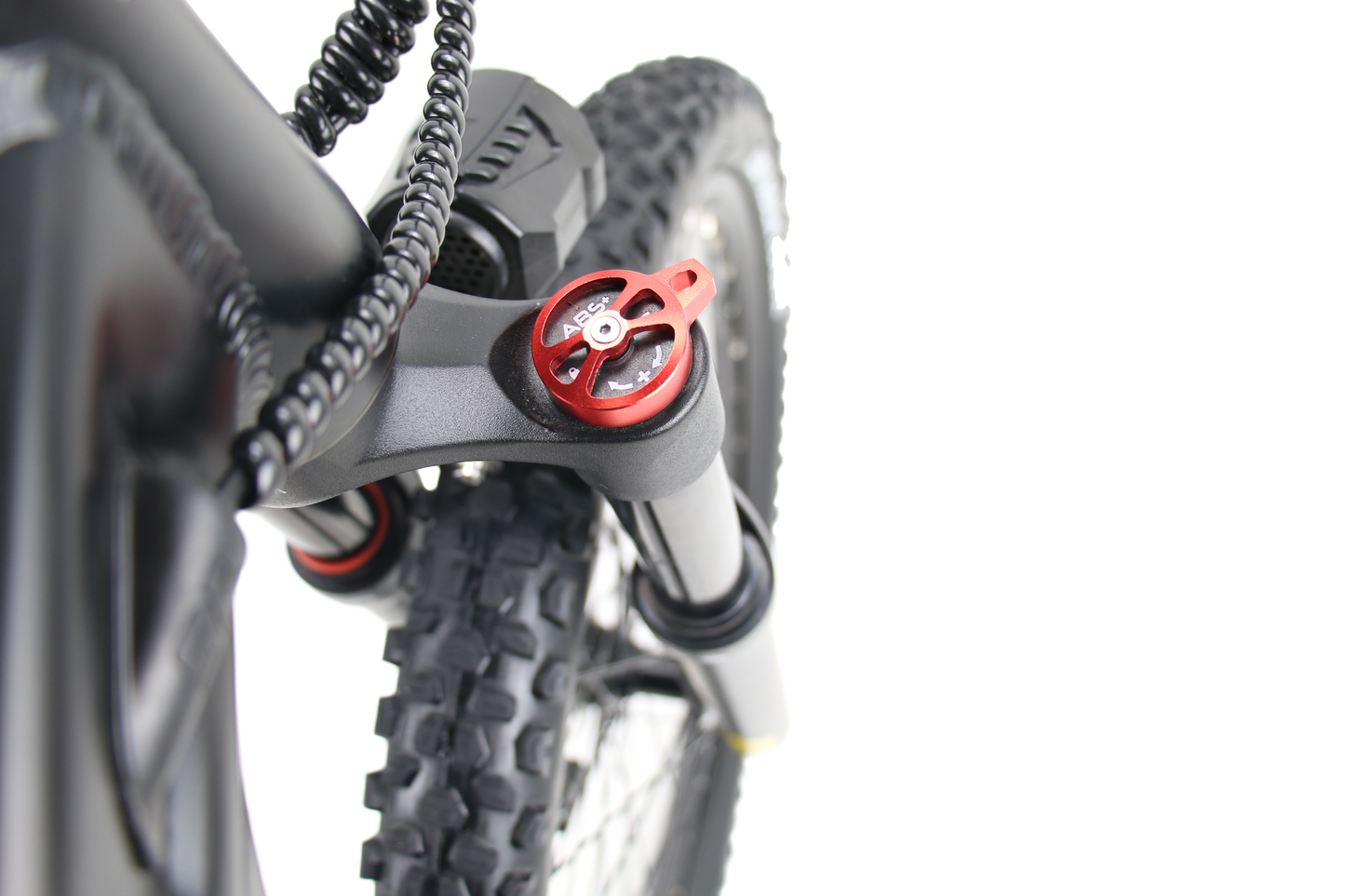

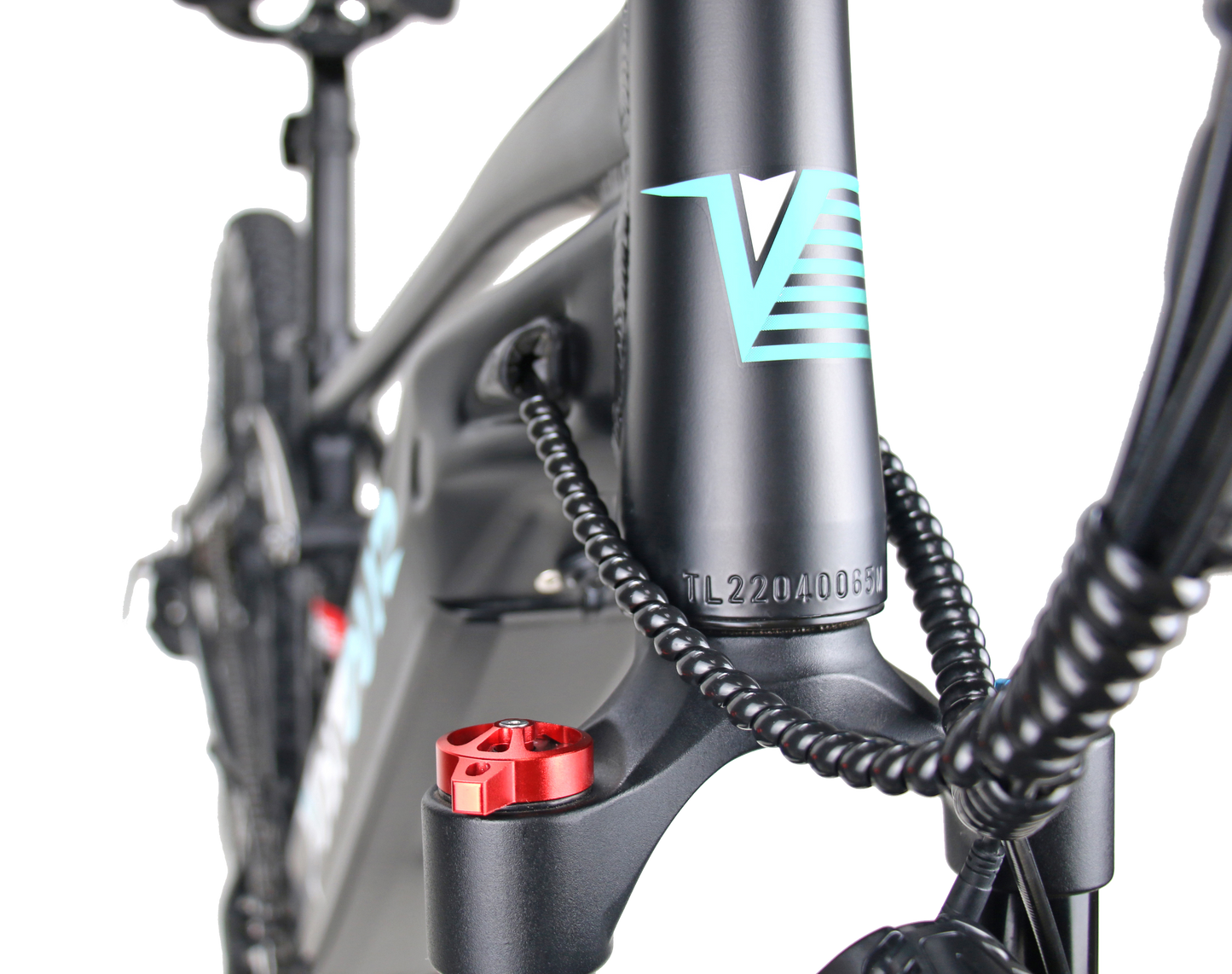

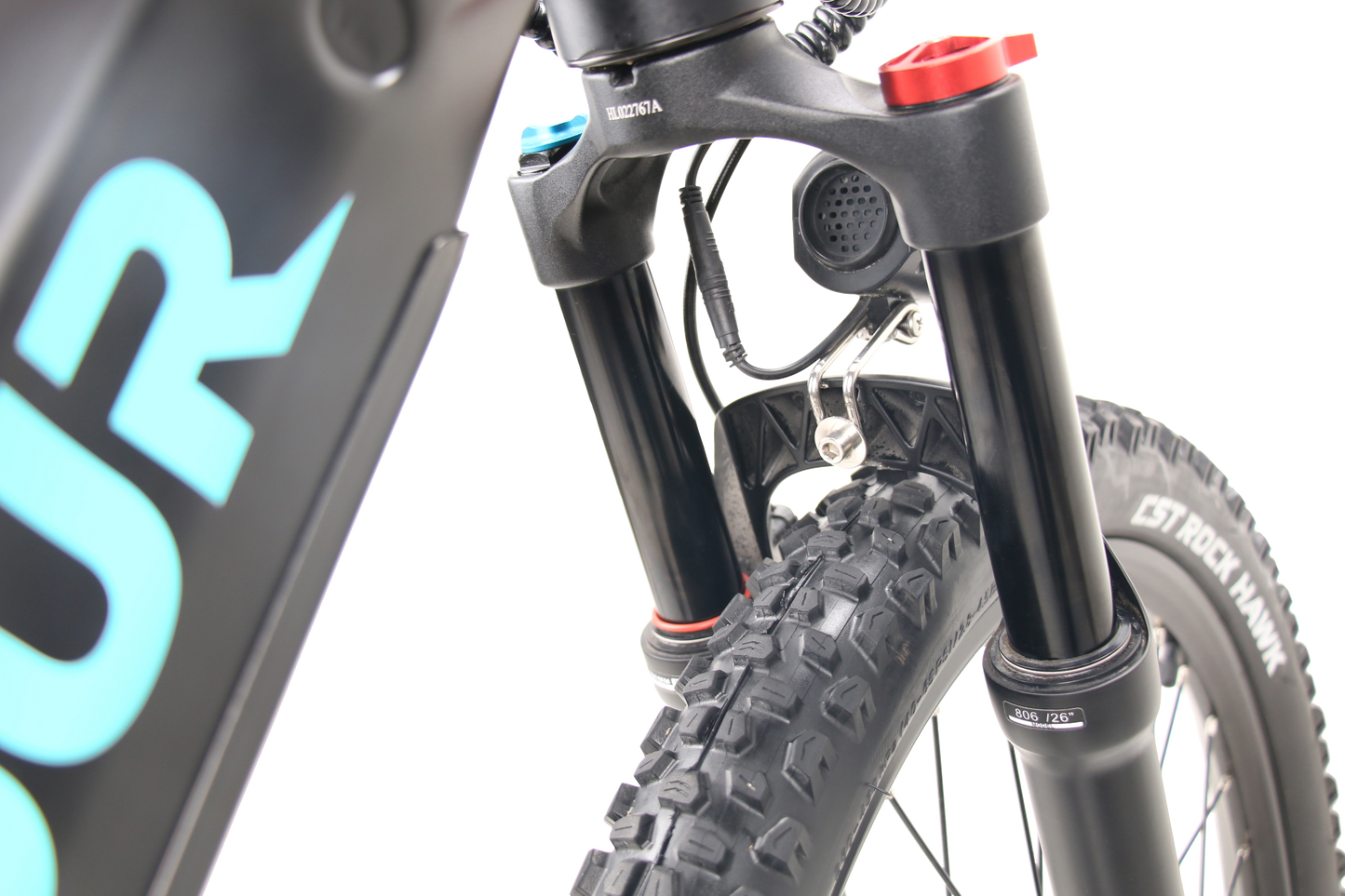

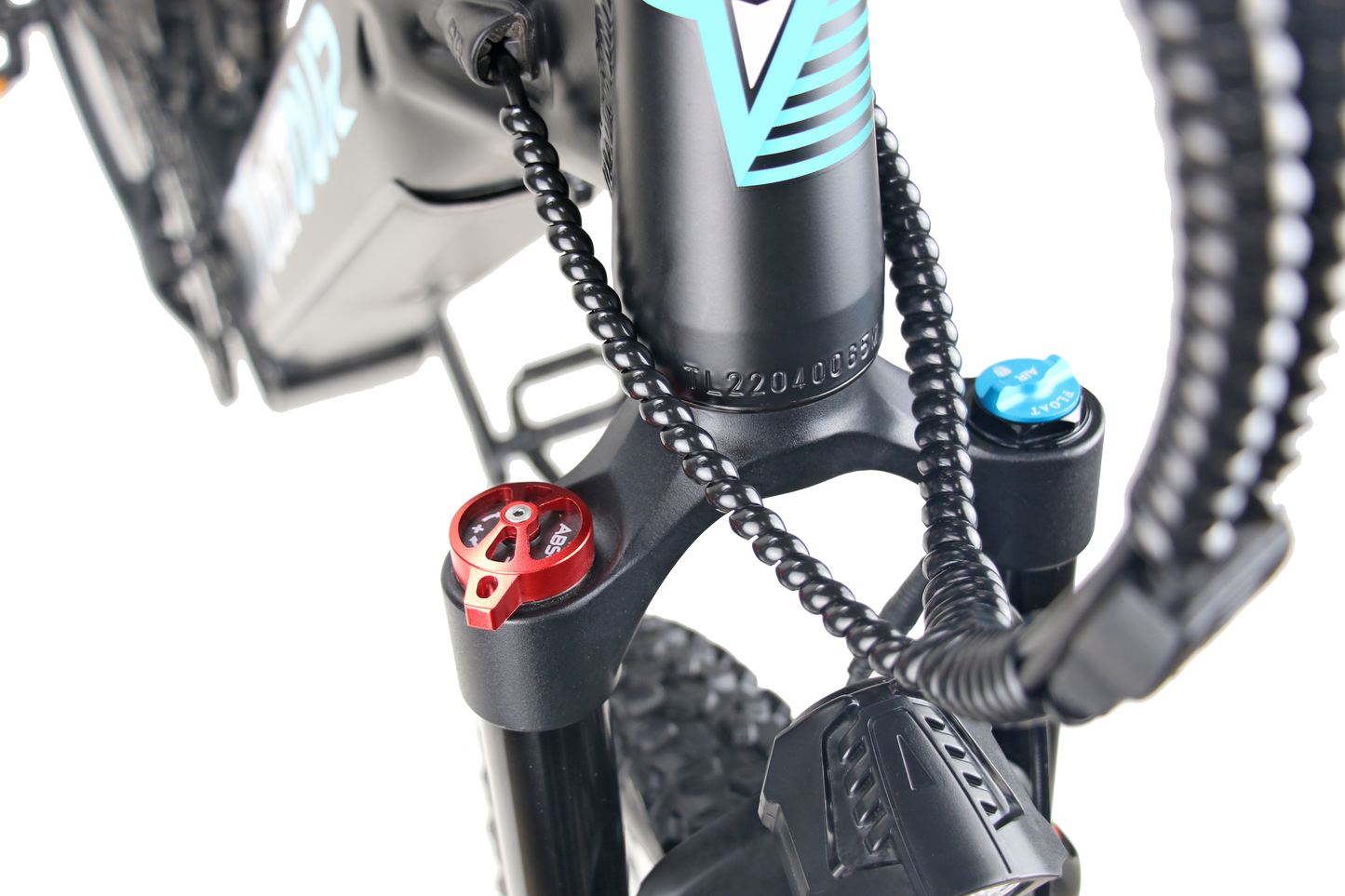

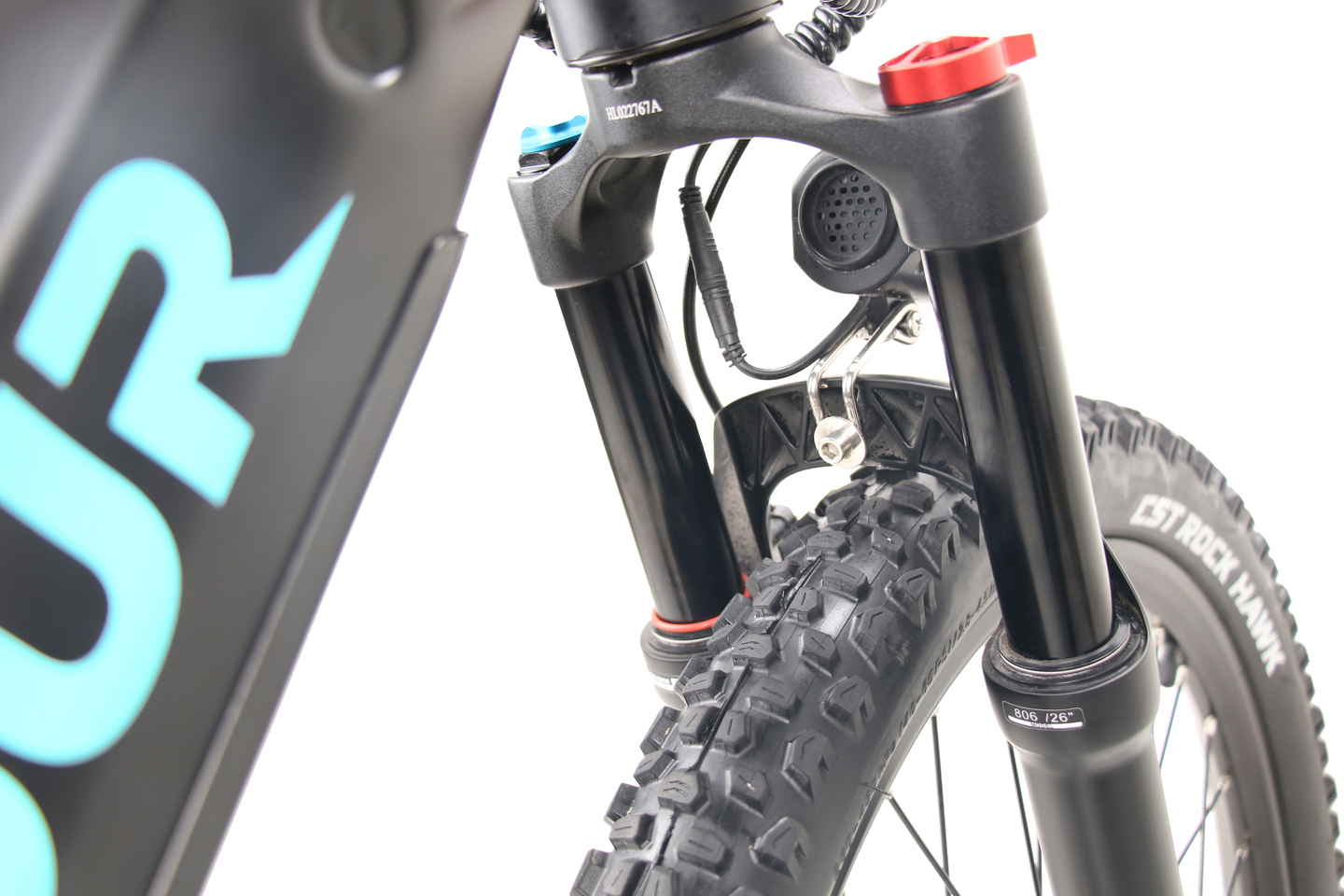

  • Air-Lock Suspension

    Our innovative suspension system is designed to deliver the ultimate ride, with superior control, comfort, and performance. The air-lock suspension fork is fully adjustable, allowing you to fine-tune your ride to your exact specifications.



Geometry

Top Tube Length
24 in
Reach
19.3 in
Head Tube Length
6.3 in
Standover Height
28 in
Wheelbase
50 in
Min Saddle Height
32.2 in
Max Saddle Height (in inches)
37.4 in
Weight Limit
300 LBS

Electronics

Motor
48V, 500 W Bafang Motor
Throttle
half-twist throttle
Display
LCD color screen
Speed
20 miles/h
Battery
14.5AH lithium battery
Sensors
speed sensor
Pedal Assist
5 levels
Charger + Charge Time
UL certified charger, 8 hours charging from 0-100%
Range
28-33 miles (E-bike) | 40-50 miles (PAS)
Frame
6061 aluminum alloy
Weight
61.8 lbs (34.4KG)
Pedals
non foldable
Range Per Charge
28-33 miles (E-bike) | 40-50 miles (PAS)
Min Speed (miles/hr)
0
Max Speed (miles/hr)
20 mph (depends on the road conditions and the rider's weight)

Components

Fork
air-lock suspension adjustable fork
Bottom Bracket
NECO high-tensile steel
Crankset
44T, aluminum alloy crank + steel teeth
Brakes
hydraulic disc brakes
Rear Derailleur
Shimano 7 speed
Rim
26" x 2.4"
Spokes
12G
Tubes
26" x 2.4"
Hubs
aluminum alloy
Tires
26" x 2.4" tires
Saddle
Sponge+silica gel
Seatpost
aluminum alloy
Seat clamp
quick release, aluminum alloy
Handlebars
aluminum alloy, 660mm length
Grips
rubber grip (left), half twist throttle grip (right)
Stem
aluminum alloy

Display

Battery Life
Indicates the battery capacity during your ride.
Speedometer
Shows current speed levels.
Odometer
Keep track of miles you've taken a ride.
Pedal Assist Level
Indicates the level the motor will boost as you pedal.
Headlight Indicator
Indicates whether the headlight is on or off.
