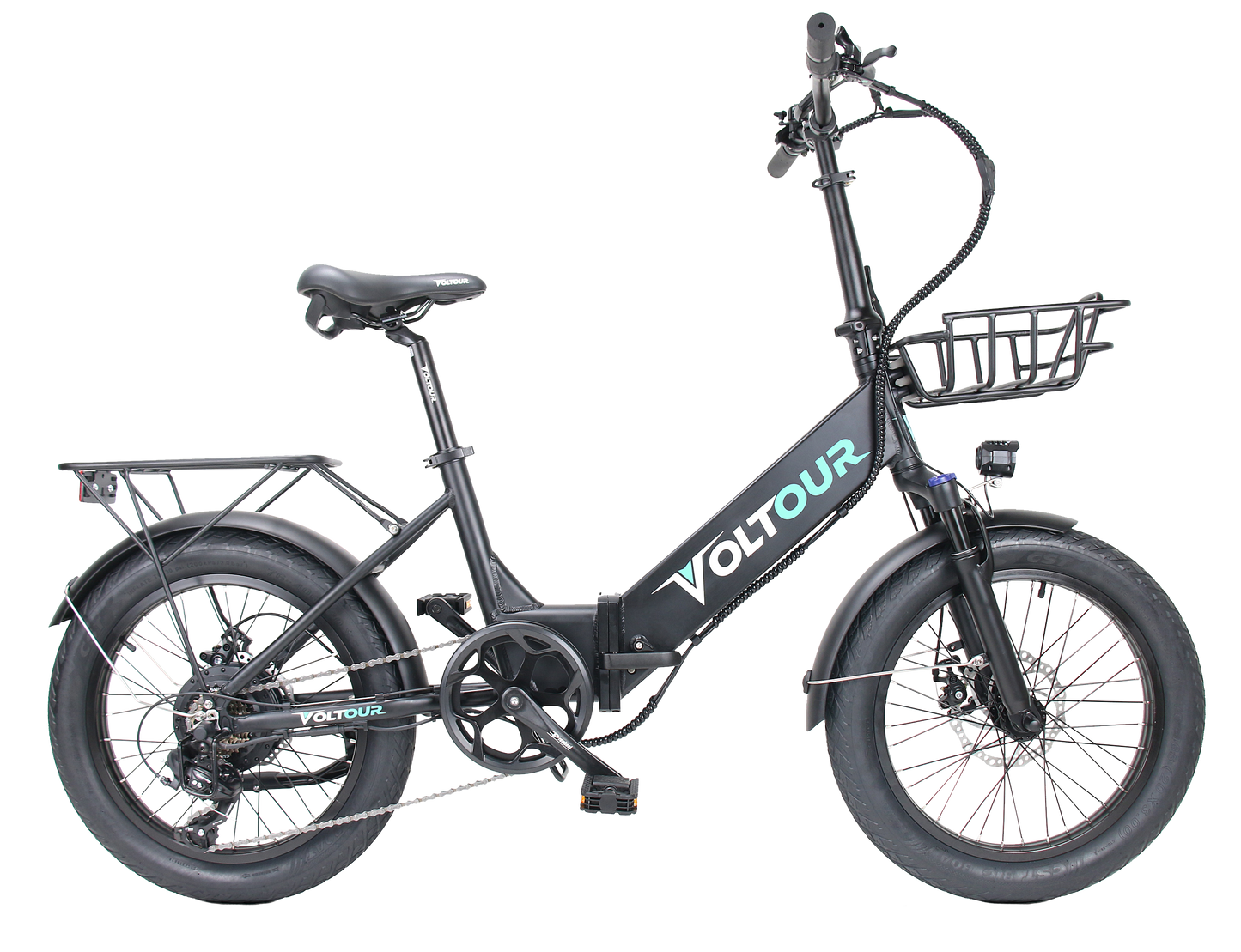

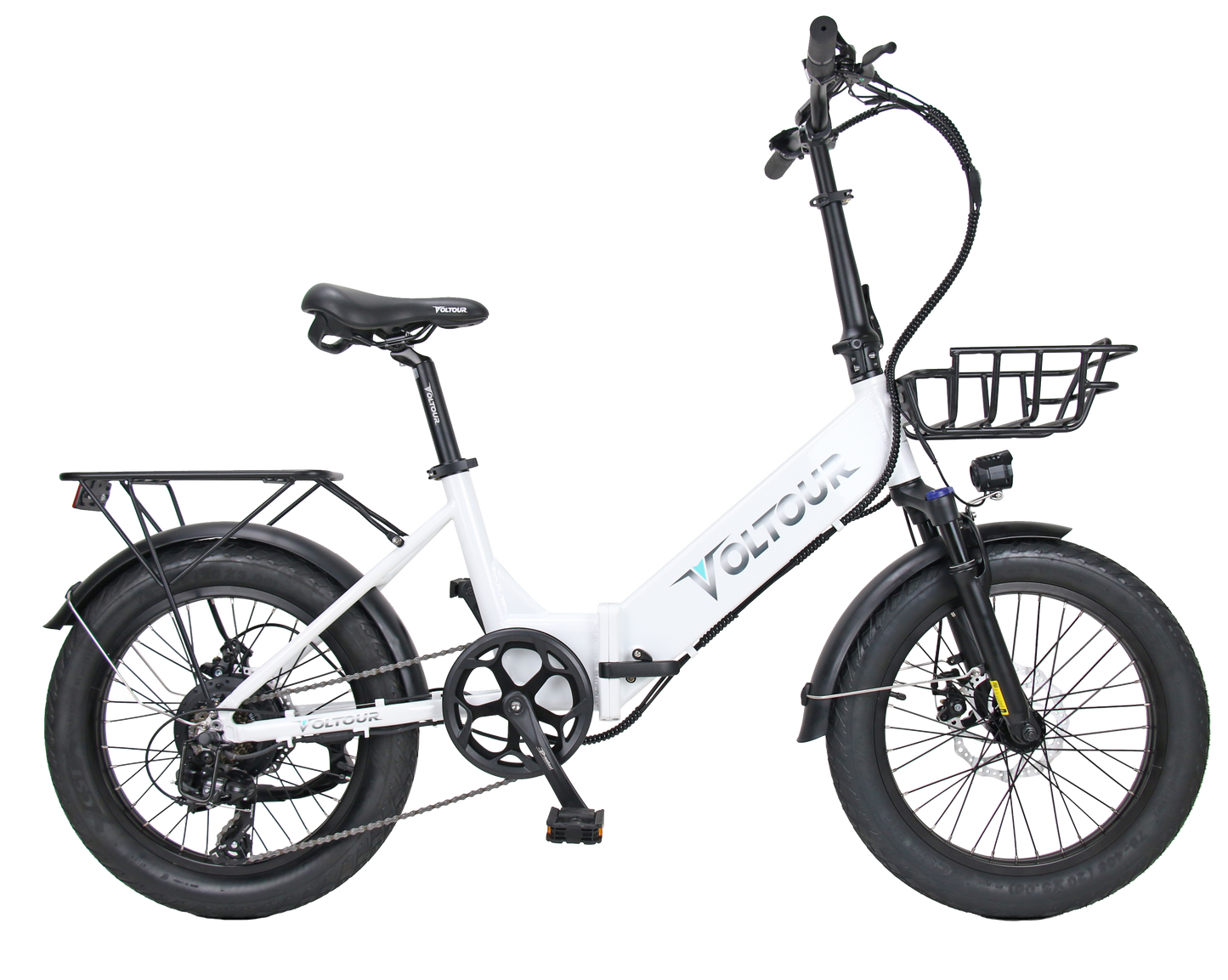

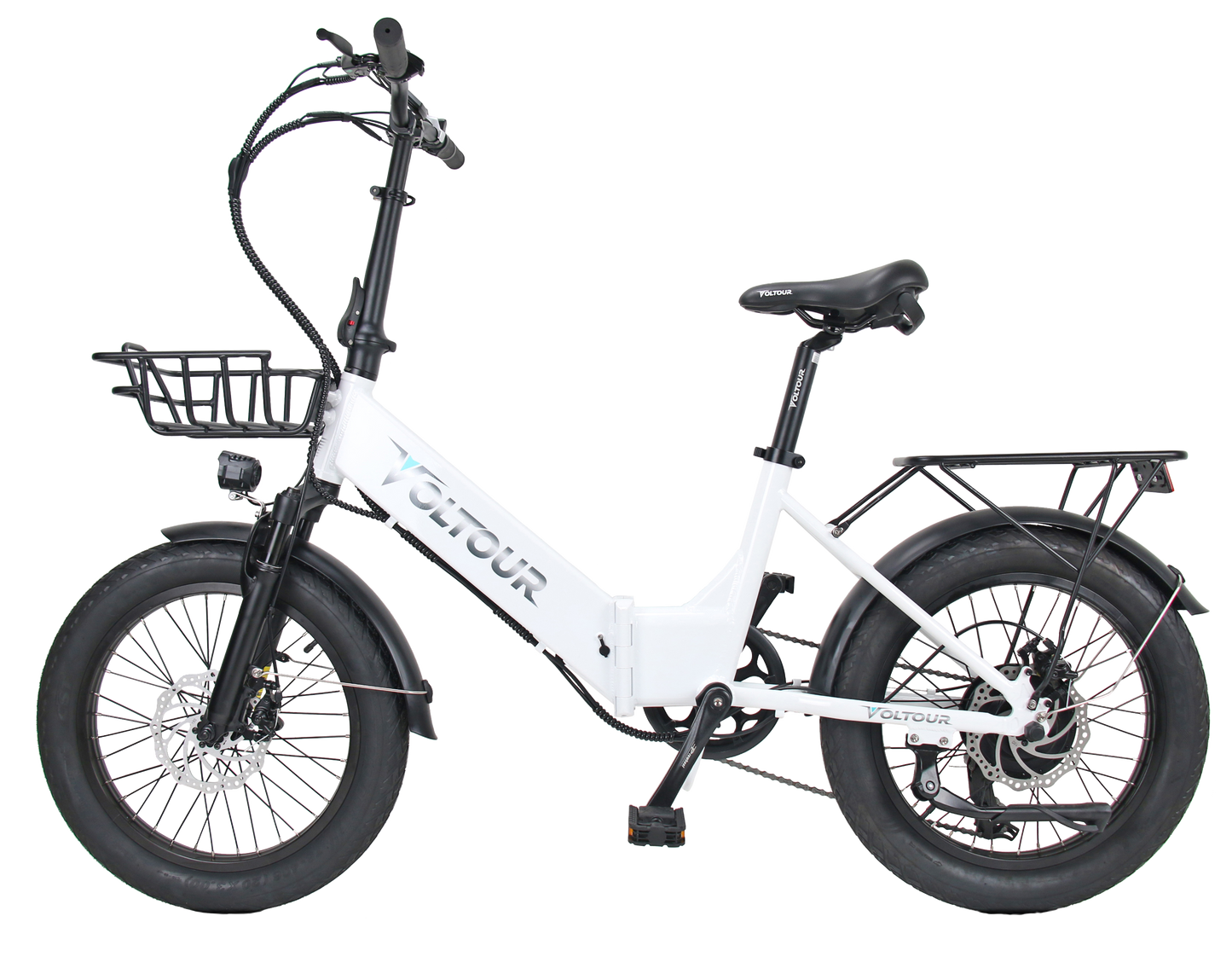

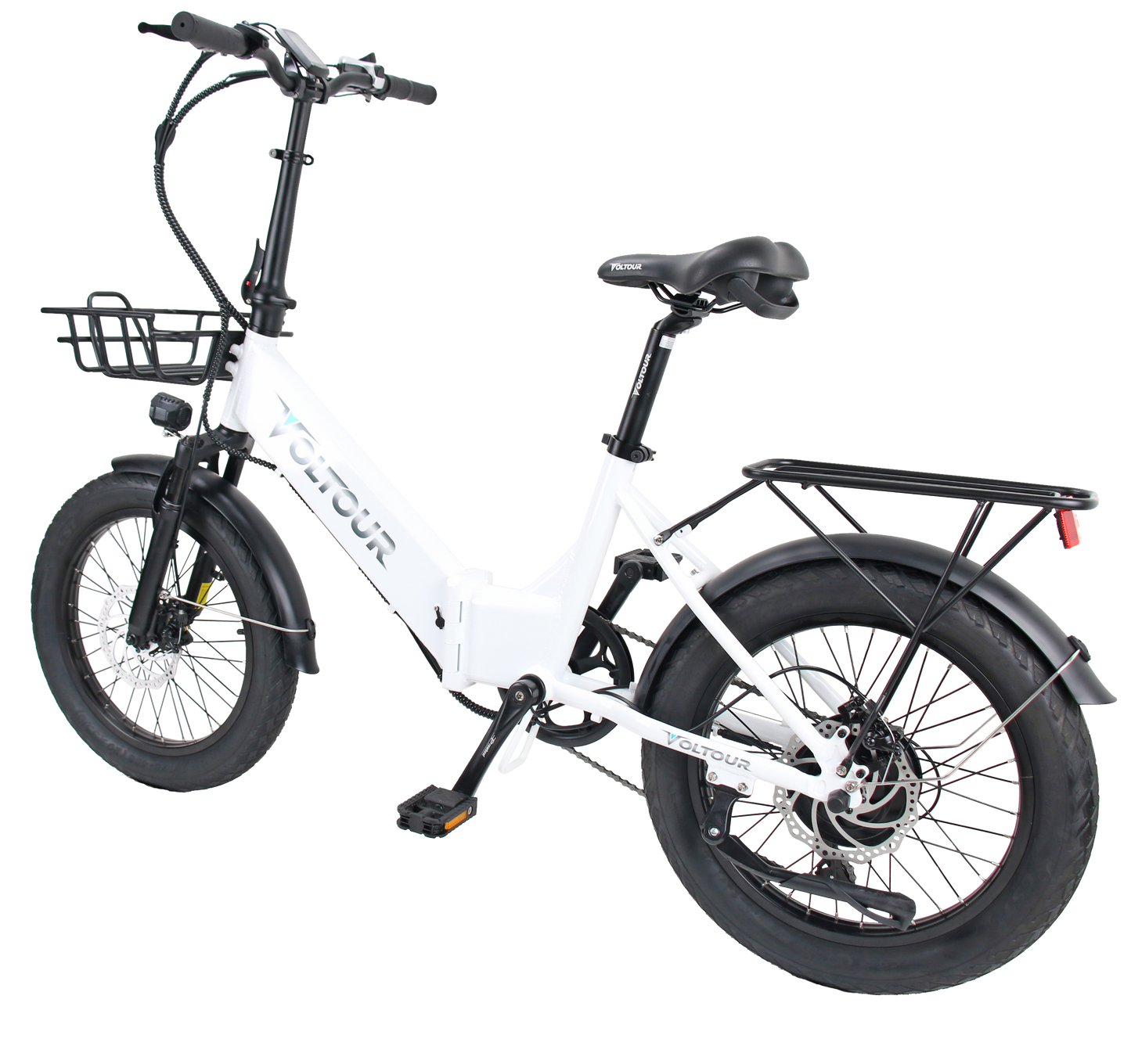

500 Watt Folding Electric Bike with StepThru Frame - Dash

500 Watt Folding Electric Bike with StepThru Frame - Dash

Regular price $2,199.00
Regular price Sale price $2,199.00
Sale Sold out
Shipping calculated at checkout.
Color

Quick Assembly

FREE SHIPPING ON ALL BIKES

Exceptional Customer Support

View full details

Overview

Electric Mountain Bike - Ranger



Sleek & Powerful

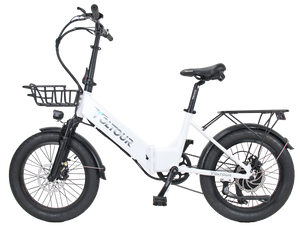

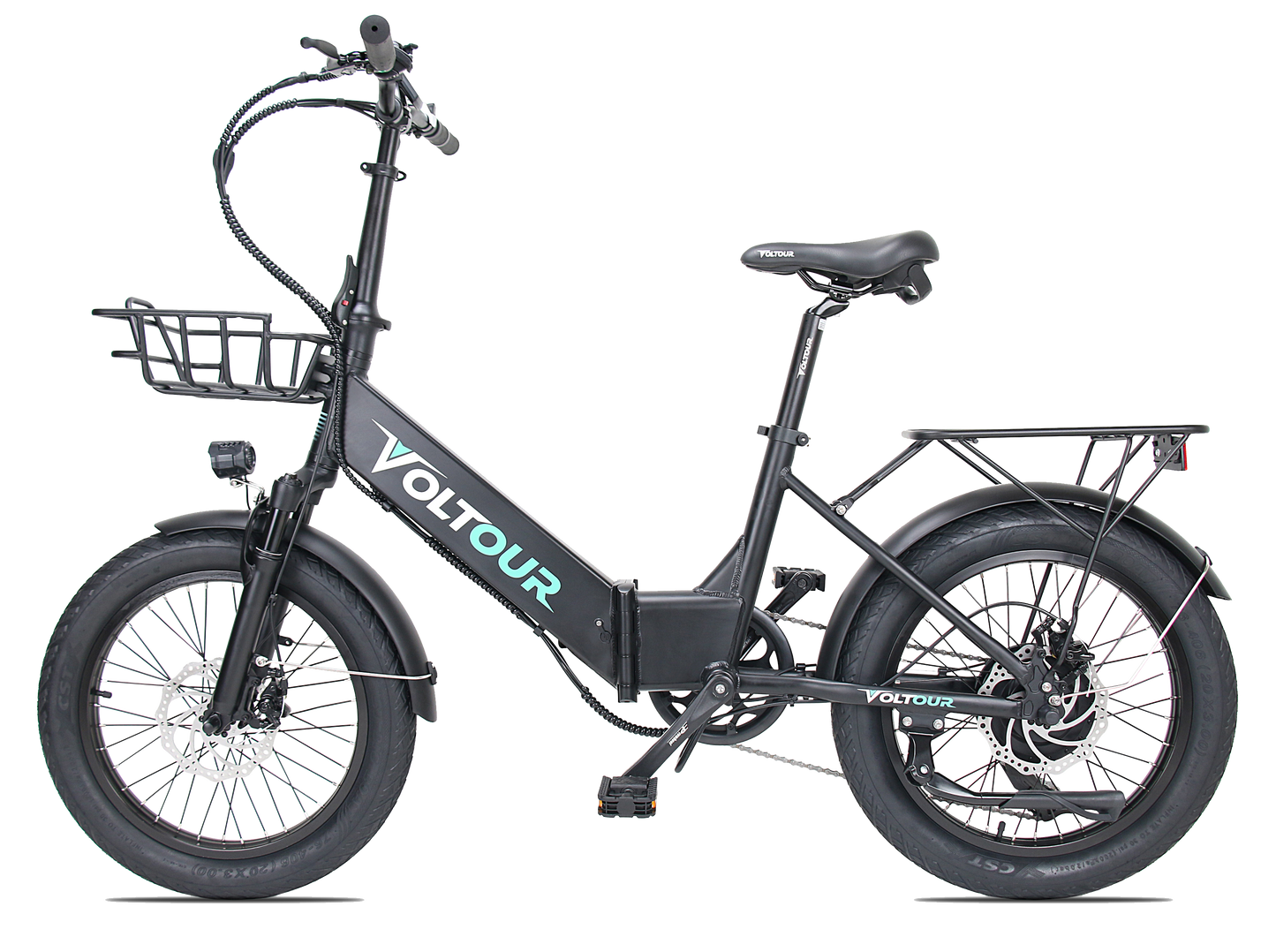

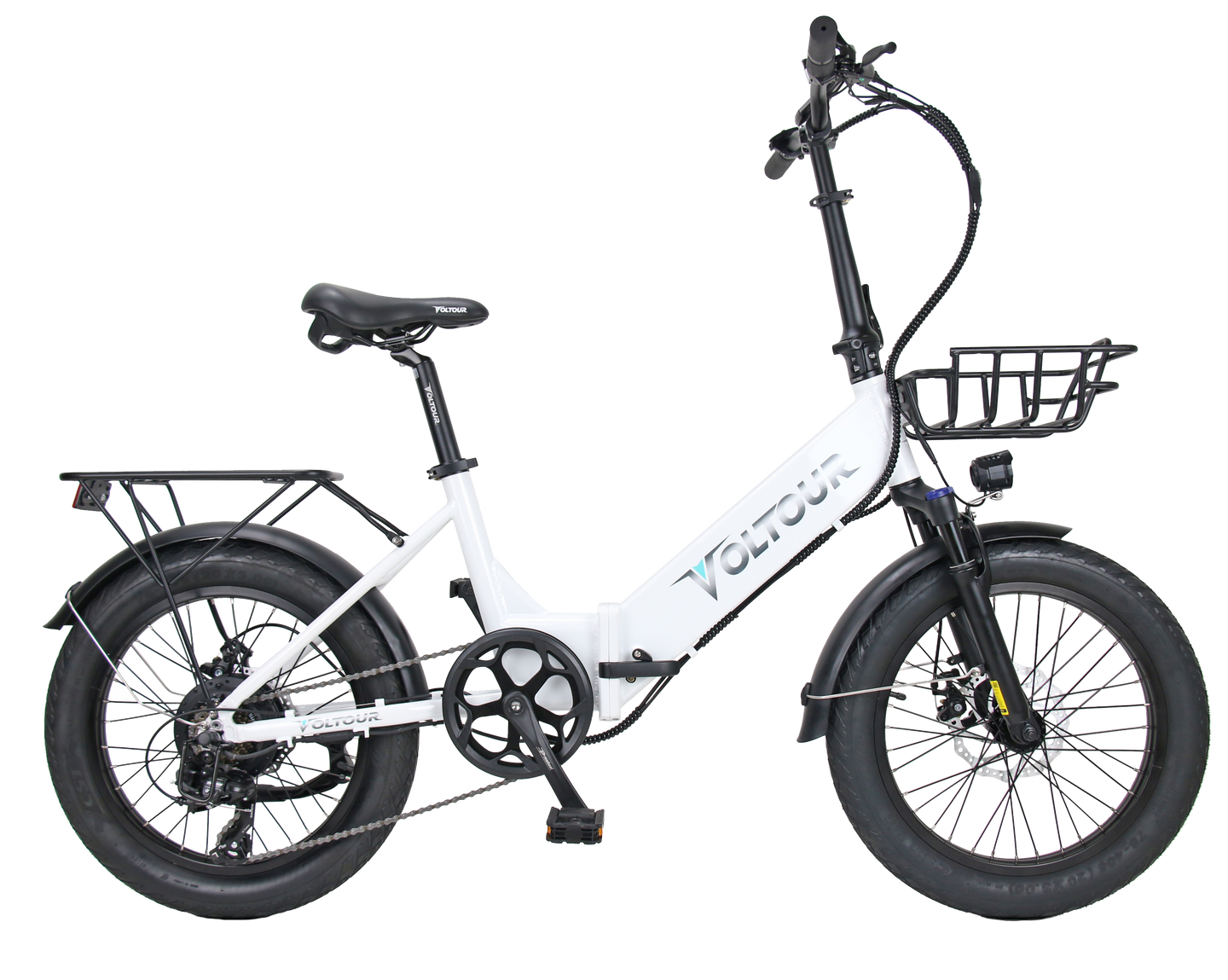

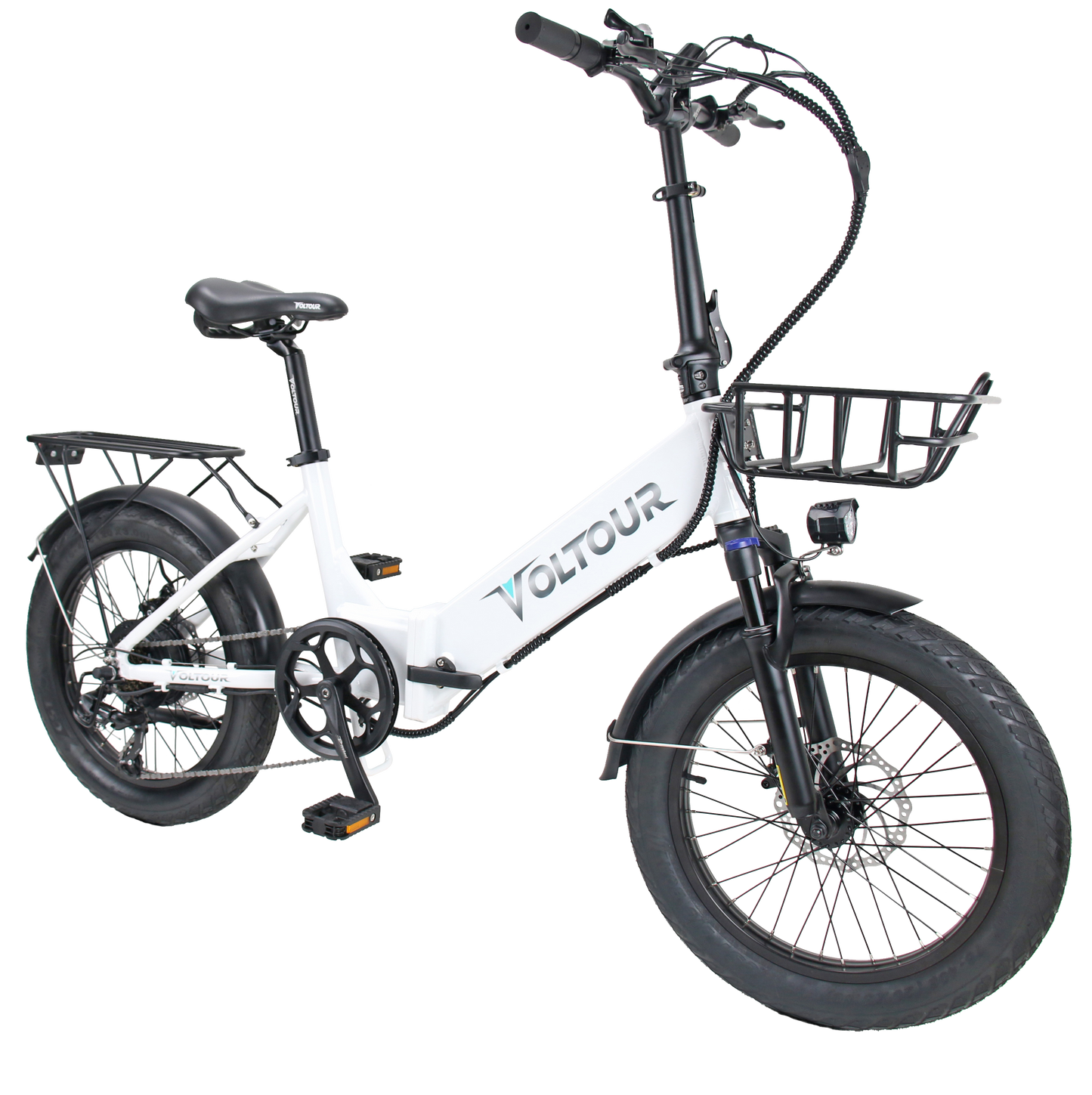

Experience the ultimate in convenience and power with the Voltour Dash 500 watt folding electric bike. Our fat tire electric bike is designed to provide superior performance and flexibility of all levels.

Electric Mountain Bike - Ranger



Integrated Frame

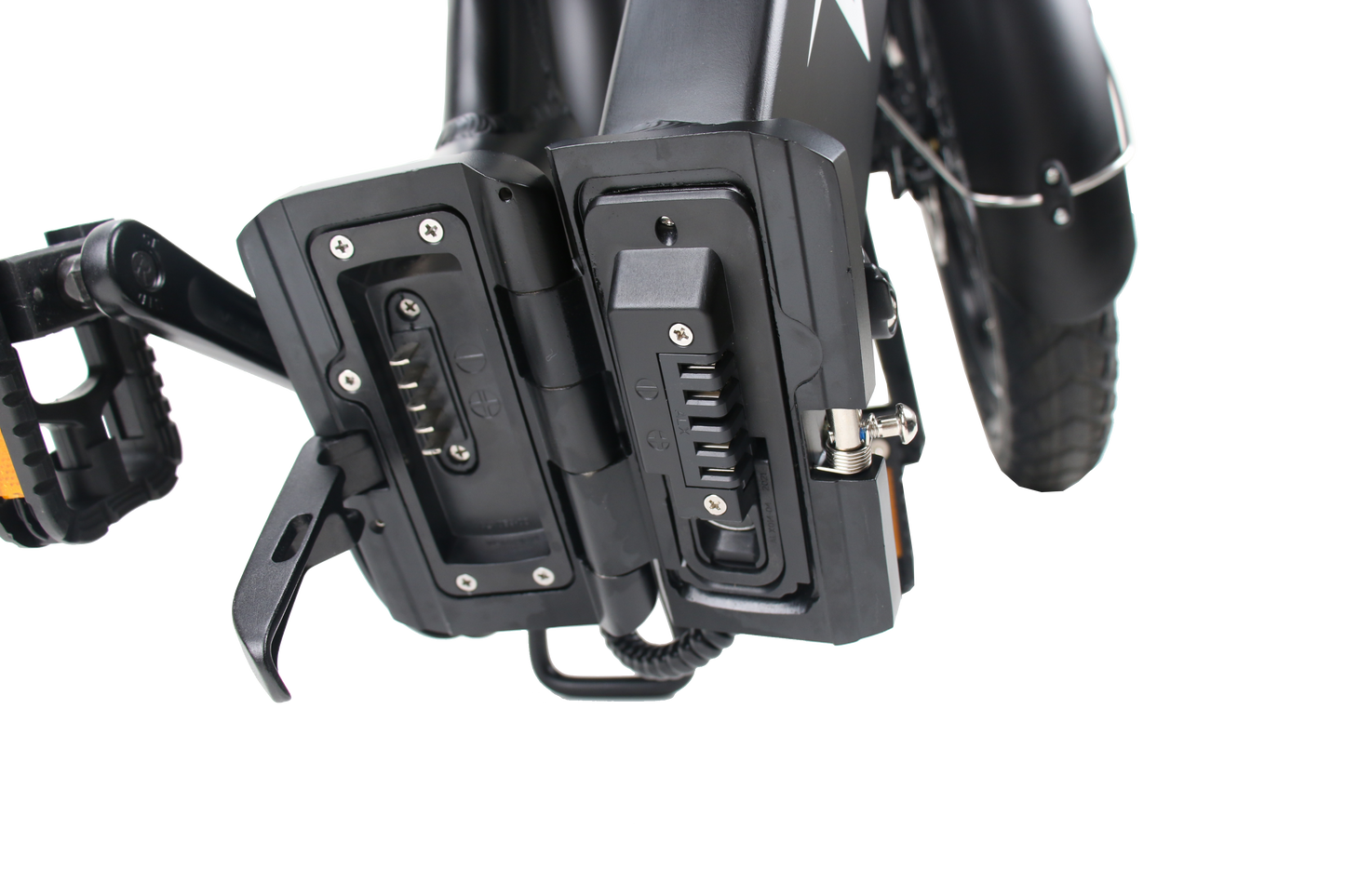

Designed to be lightweight and compact, the Dash's frame was designed to integrate the battery in-tube to ensure a stable and enjoyable ride.

Electric Mountain Bike - Ranger



Innovative Technology

Equipped with a colorful LCD display and high-quality components, the Voltour’s Dash is a perfect combination of present-day features and easy up-keep.

  • Ride & Transport

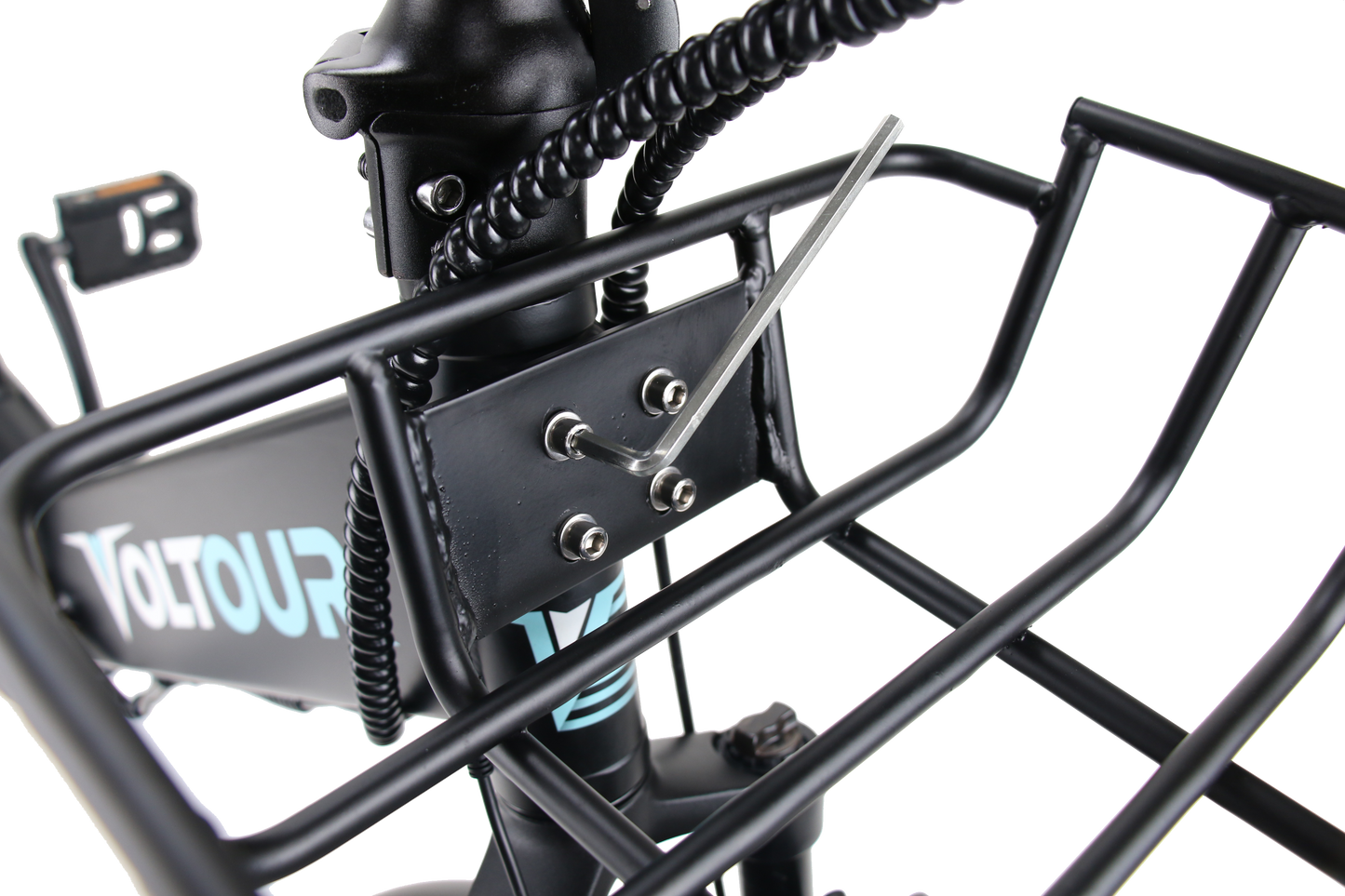

    The bike can carry up to 250 lbs. and is equipped with a rear rack to make it easy to load up and transport cargo whenever needed.

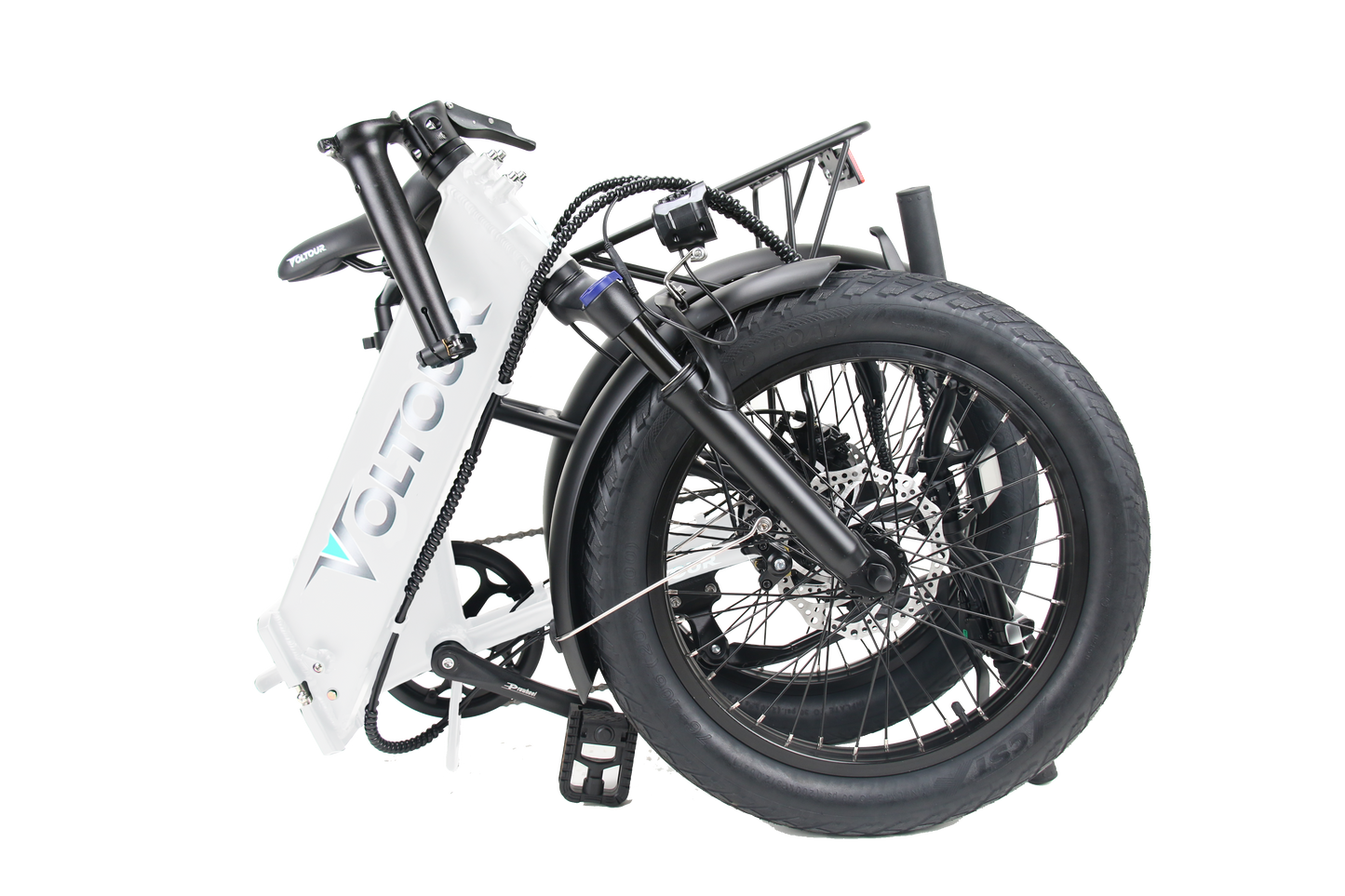

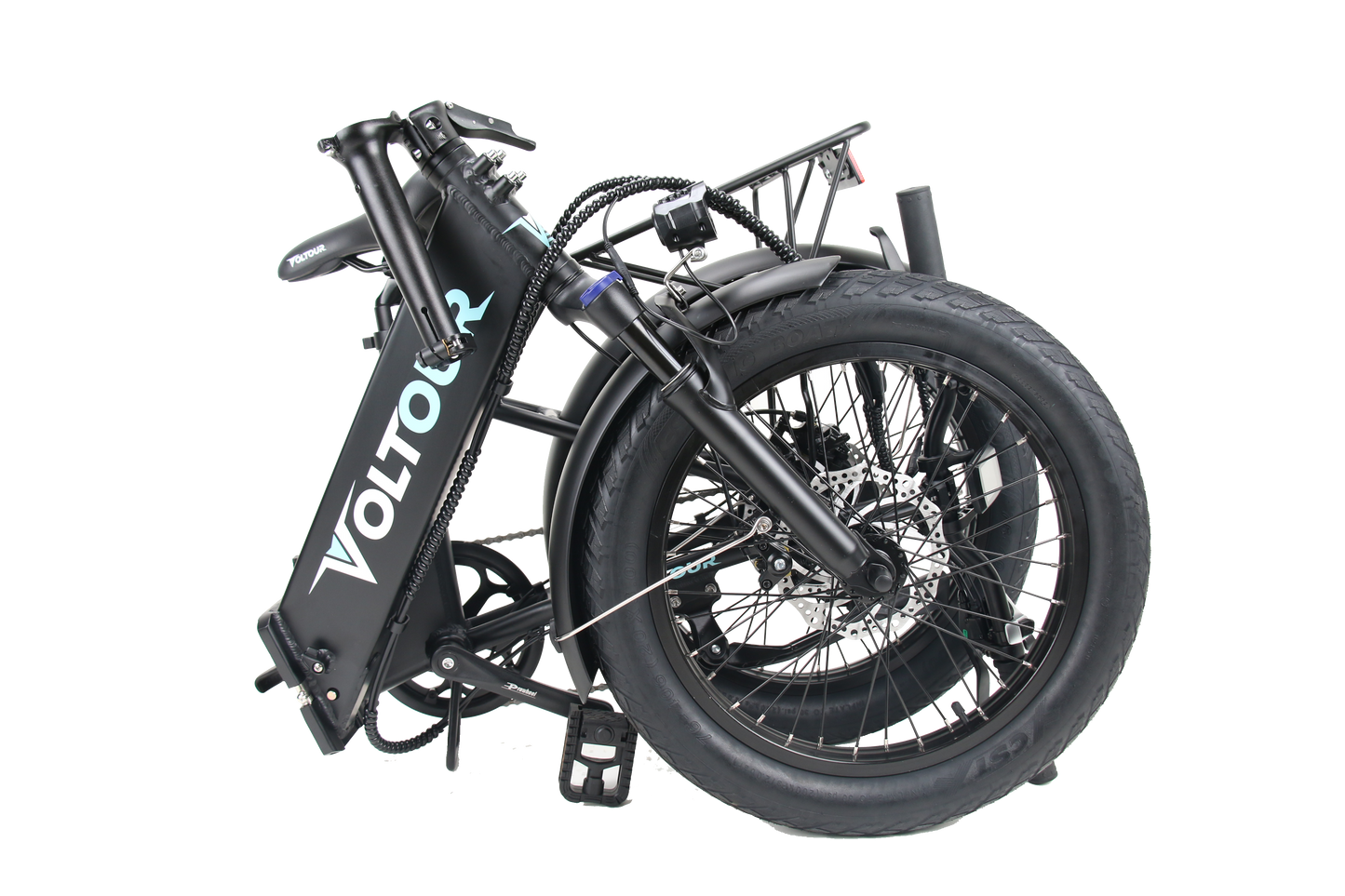

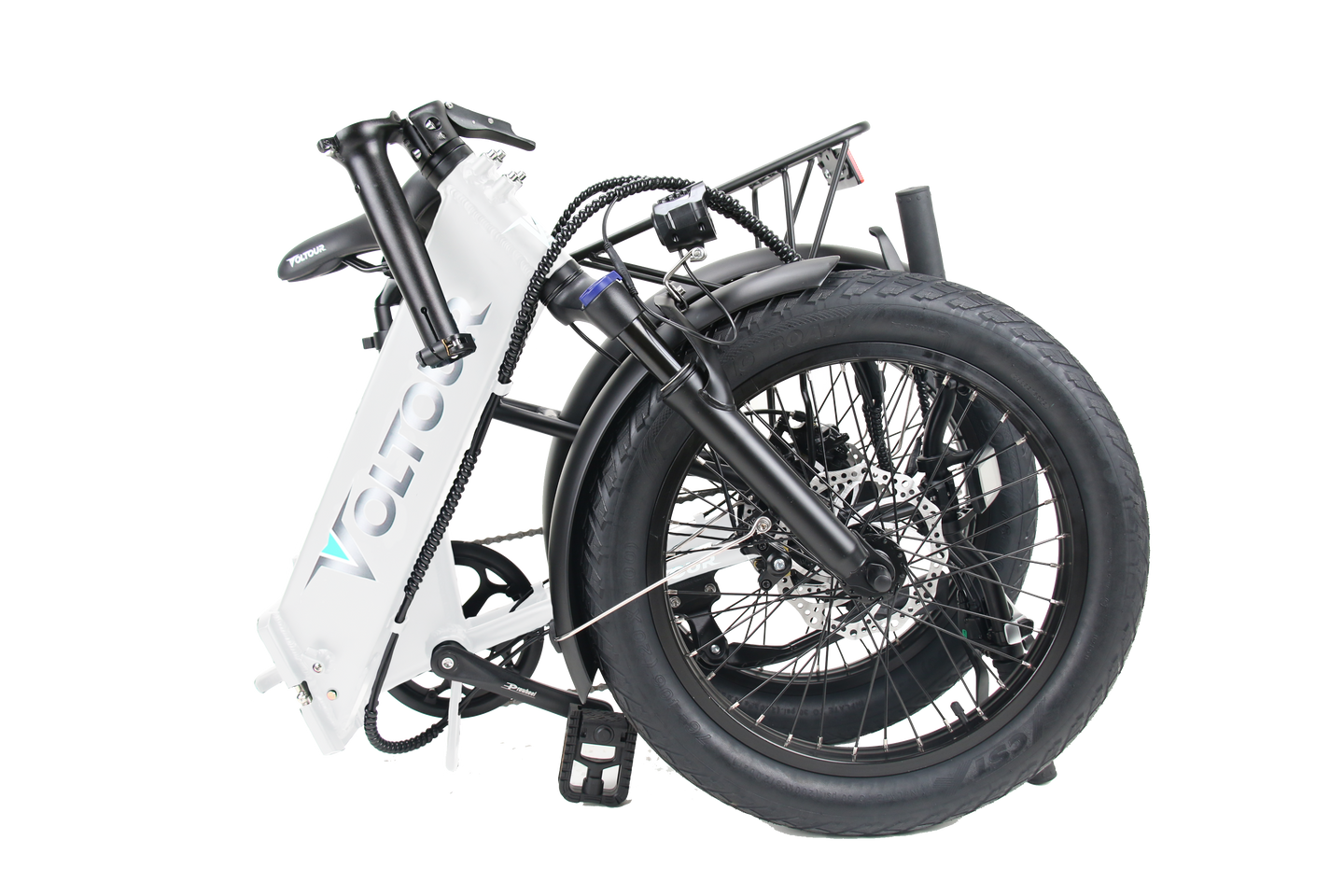

  • Foldable Frame

    Designed with a total length of 66.5”, the Dash is a compact bike making it rideable for many people. The folding electric bike design allows for easy storage and transport, making it the perfect choice for those who need a bike that can keep up with their busy lifestyle. Simply fold it up and take it with you wherever you go.

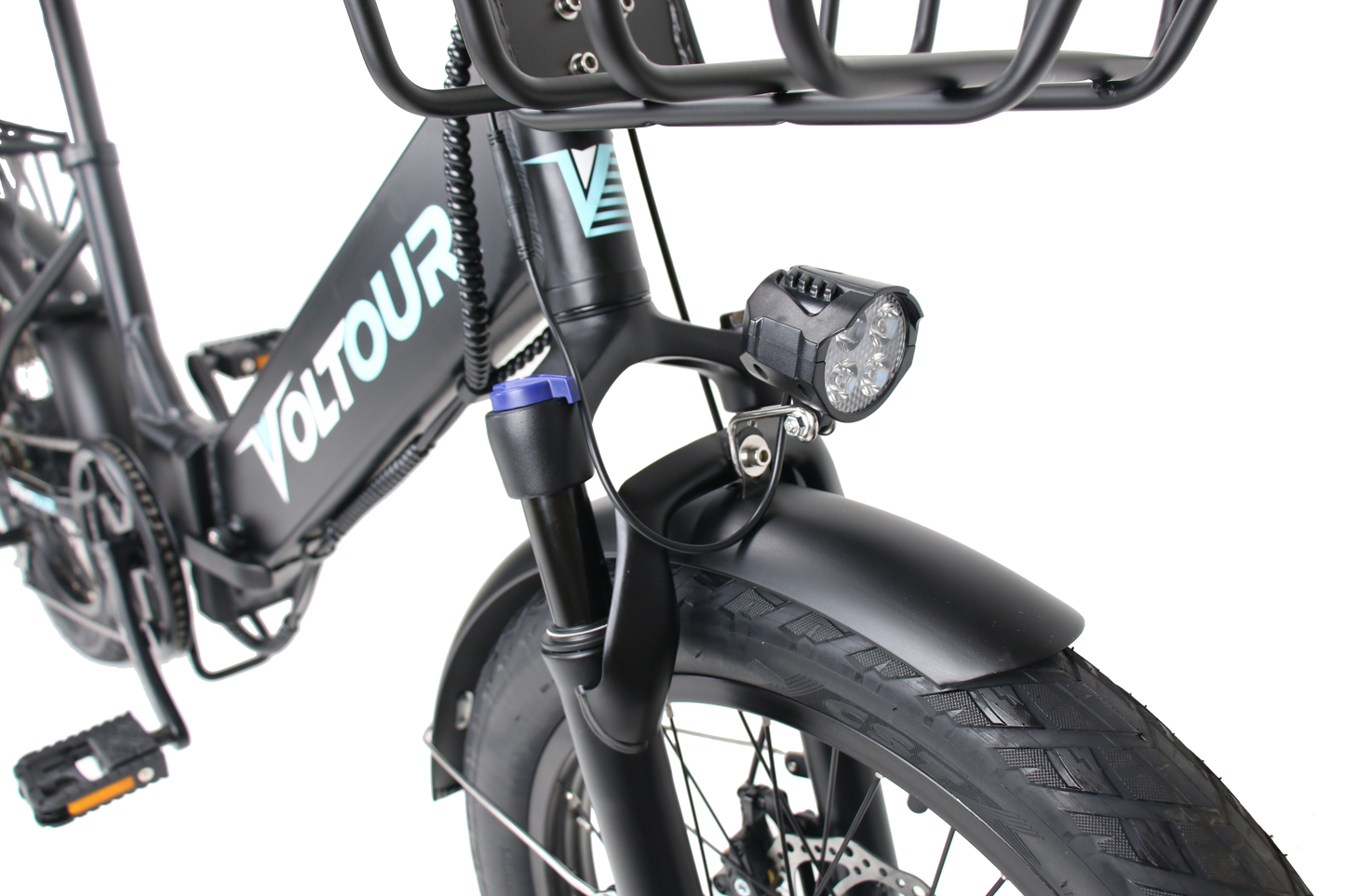

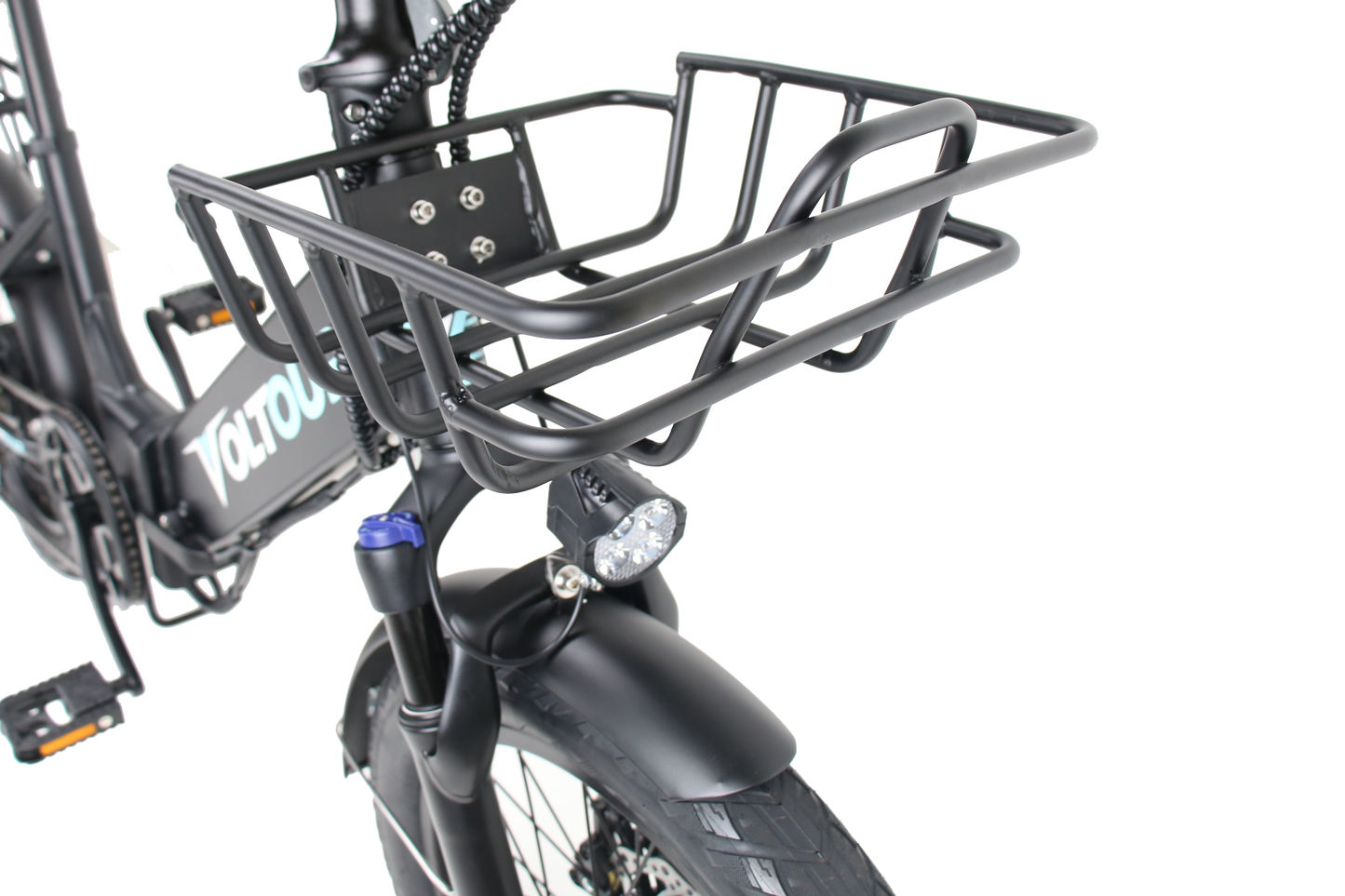

  • Integrated Bright Headlight

    Whether you’re riding during the day or at night, the bike is equipped with a bright headlight providing ample light when needed to ensure safe riding

  • Comfortable Riding

    Voltour comes with an adjustable seat post and a high-quality soft saddle providing cushion in all the right places.

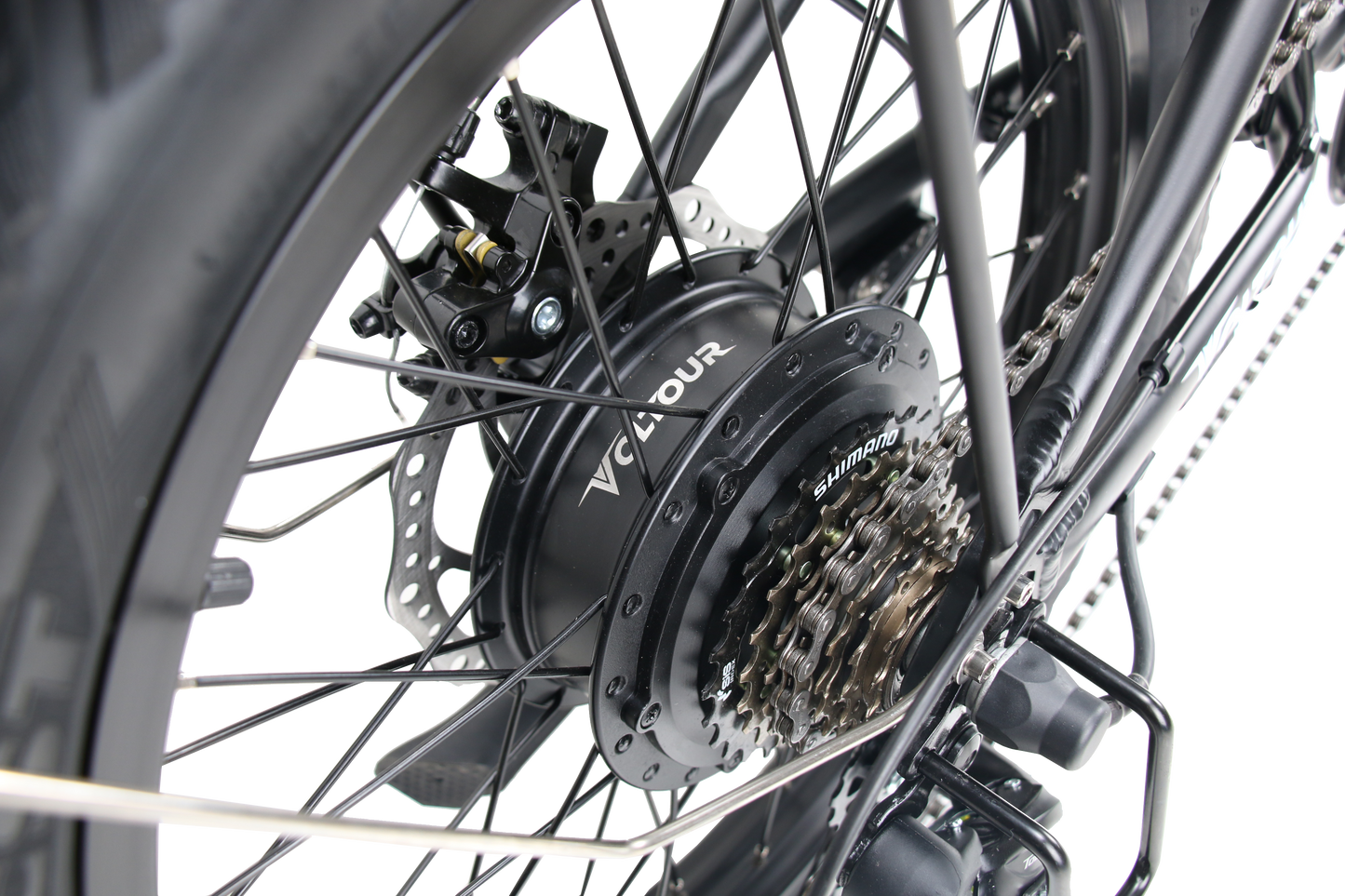

  • High Quality Motor

    Equipped with a high-quality rear hub 500W motor, the Voltour Dash delivers a smooth ride with a speed of up to 20 MPH. The motor provides consistent power to help you tackle any terrain with ease whether you’re going through a bumpy trail or traveling down the street.

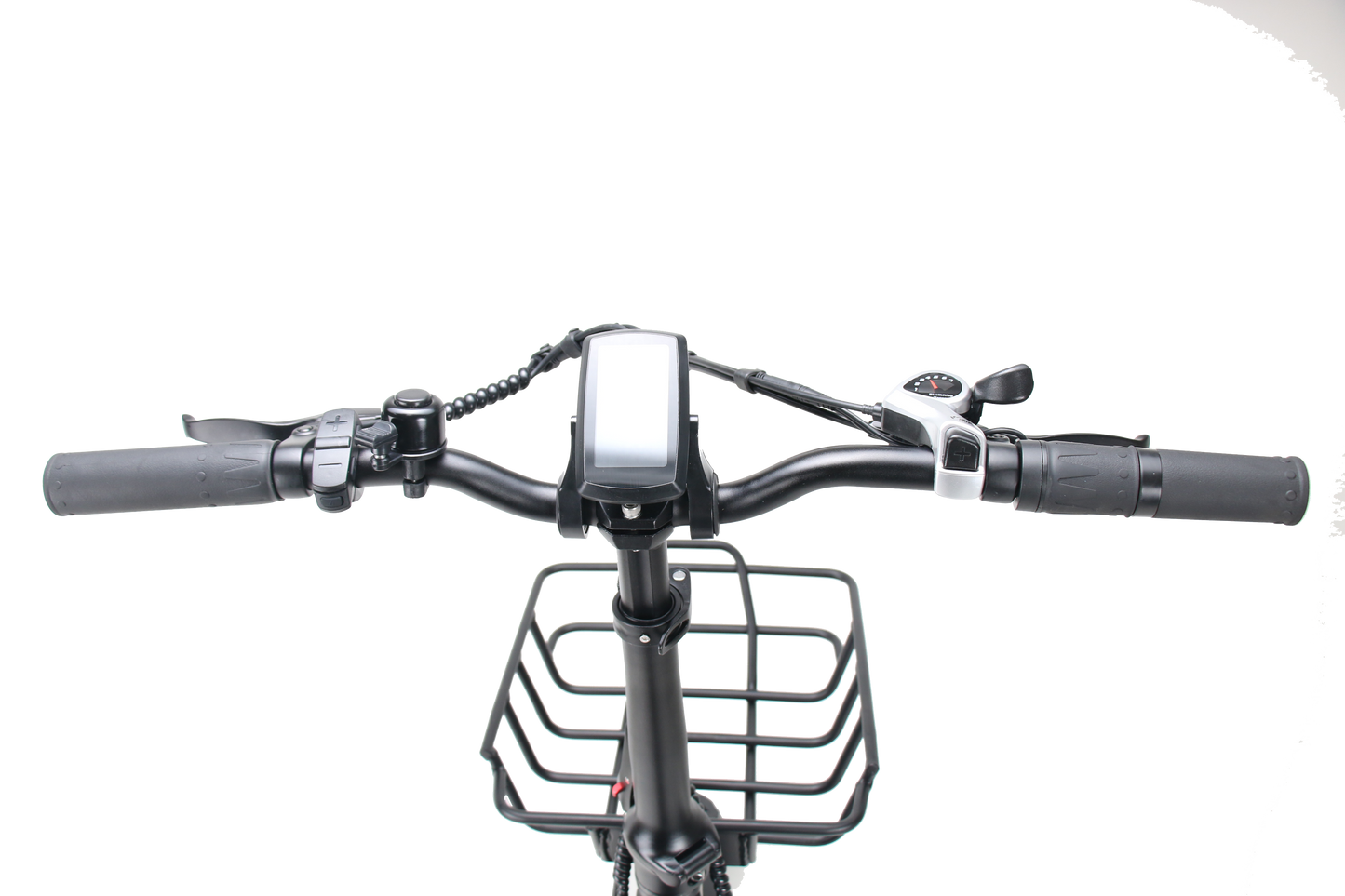

  • Throttle Assistance

    Throttle assistance available at your grip to easily access a burst of speed gears at a moment’s notice.

  • Fat Tire

    Ride comfortably with fat 20” x 3” tires designed to provide a smooth ride over city streets or rocky terrain.

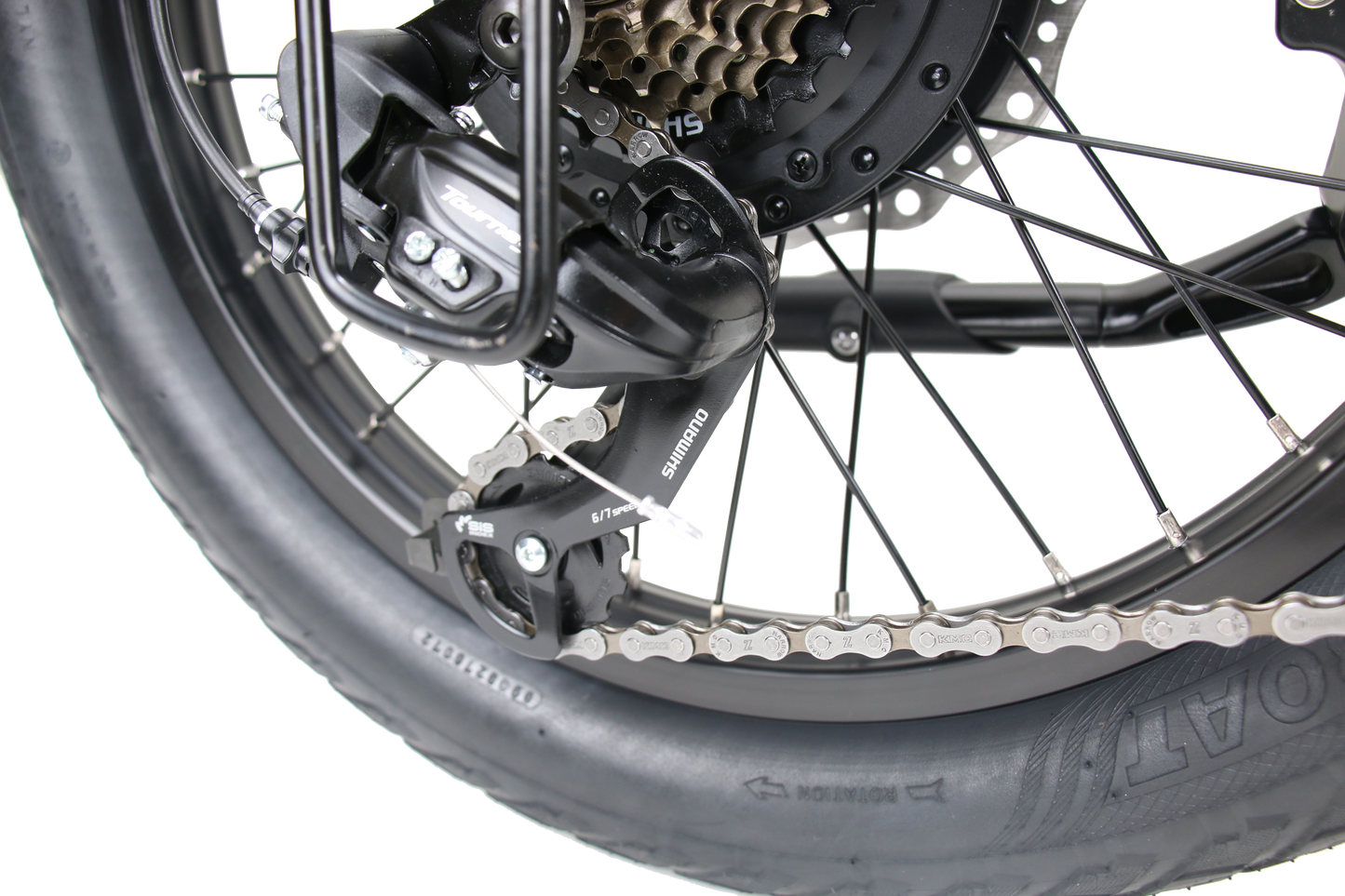

  • 7-Speed Gear Shifter

    7-Speed Shimano cassette allows for the rider to control the pedaling speed while riding through different terrains such as uphill or downhill.

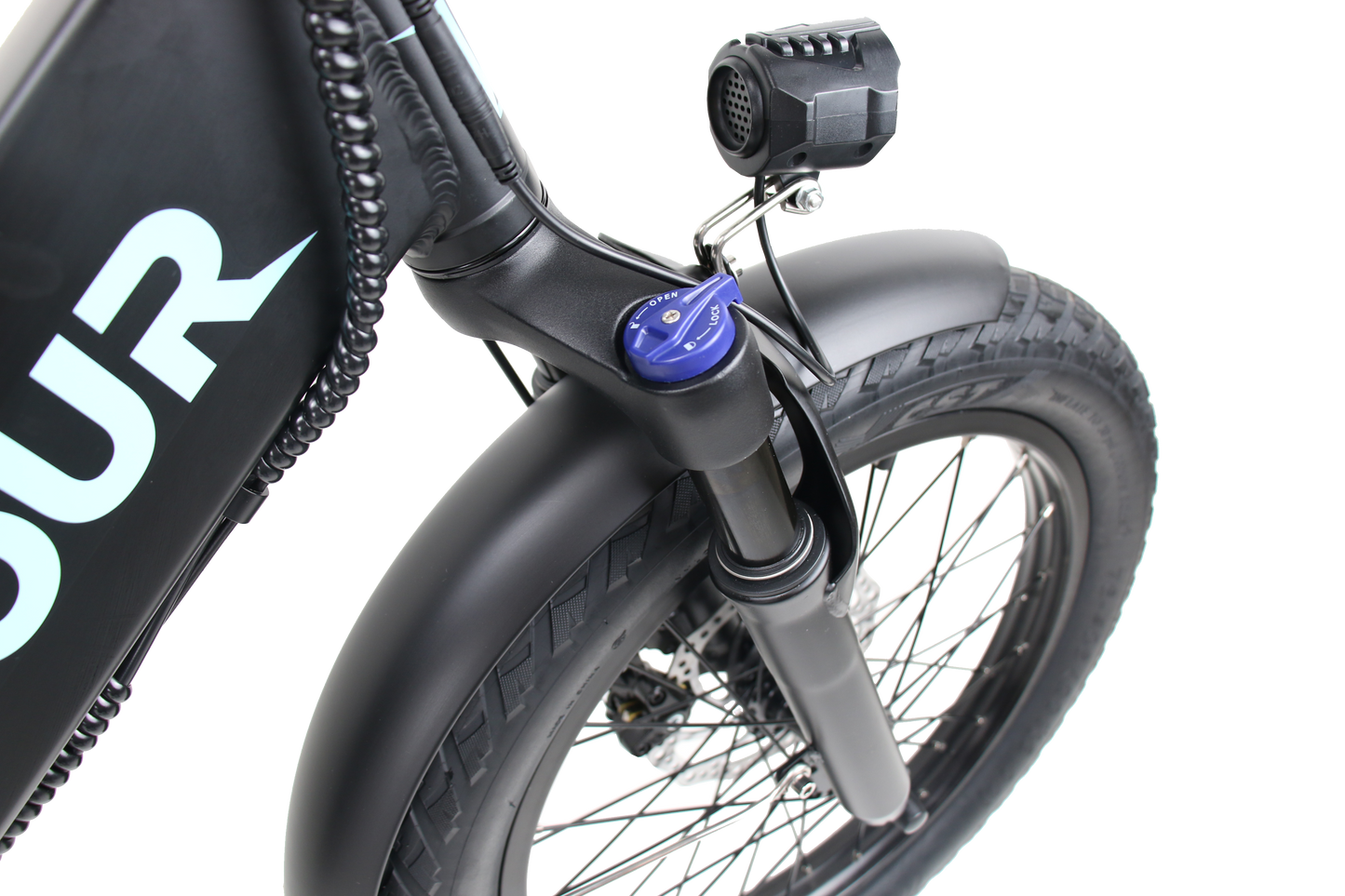

  • Lockable Suspension

    Lockable suspension feature gives the rider more control over the firmness of the suspension.

Geometry

Top Tube Length (in inches)
20
Reach (in inches)
20
Head Tube Length (in inches)
6.1
Standover Height (in inches)
18.1
Wheelbase (in inches)
44.5
Min Saddle Height (in inches)
31.1
Max Saddle Height (in inches)
40.2
Weight Limit (in Lbs)
250 LBS

Electronics

Motor
48V 500W Motor
Throttle
half-twist throttle
Display
LCD color screen
Speed
20 miles/h
Battery
10AH lithium battery
Sensors
speed sensor
Pedal Assist
5 levels
Charger + Charge Time
UL certified charger, 6 hours charging from 0-100%
Range
25-33 miles (E-bike) | 38-40 miles (PAS)
Frame
6061 aluminium alloy
Weight (in Lbs)
66LBS(29.9KG)
Pedals
foldable
Range Per Charge (in miles)
25-33 miles (E-bike) | 38-45 miles (PAS)
Min Speed (miles/hr)
0
Max Speed (miles/hr)
20 miles/h (depends on the road conditions and the rider's weight)

Components

Fork
mechanical lockable shock absorber fork
Bottom Bracket
NECO high-tensile steel
Crankset
48T, aluminum alloy crank+steel teeth
Brakes
mechanical electrical disc brake
Rear Derailleur
Shimano 7 speed
Rim
20 x 3.0
Spokes
12G
Tubes
20 x 3.0
Hubs
aluminum alloy
Tires
20 x 3.0 tires
Saddle
Sponge+silica gel
Seatpost
aluminum alloy
Headset
NECO aluminum alloy, high-tensile steel
Seat clamp
quick release , aluminum alloy
Handlebars
aluminum alloy , 620mm length
Grips
rubber grip (left ) , half twist throttle grip ( right )
Stem
aluminum alloy

Display

Battery Life
Indicates the battery capacity during your ride.
Speedometer
Shows current speed levels
Battery Life
Indicates the battery capacity during your ride
Odometer
Keep track of miles you've taken a ride
Pedal Assist Level
Indicates the level the motor will boost as you pedal
Headlight Indicator
Indicates whether the headlight is on or off
